Performance
Optimal Airflow Distribution – Helps distribute airflow efficiently and evenly across connected radial duct runs.
Flexible Installation – Available in rear, top and side entry configurations to suit different ventilation system layouts and installation requirements.
Acoustic Performance – Internal acoustic lining helps reduce noise transmission through the manifold and connected ductwork.

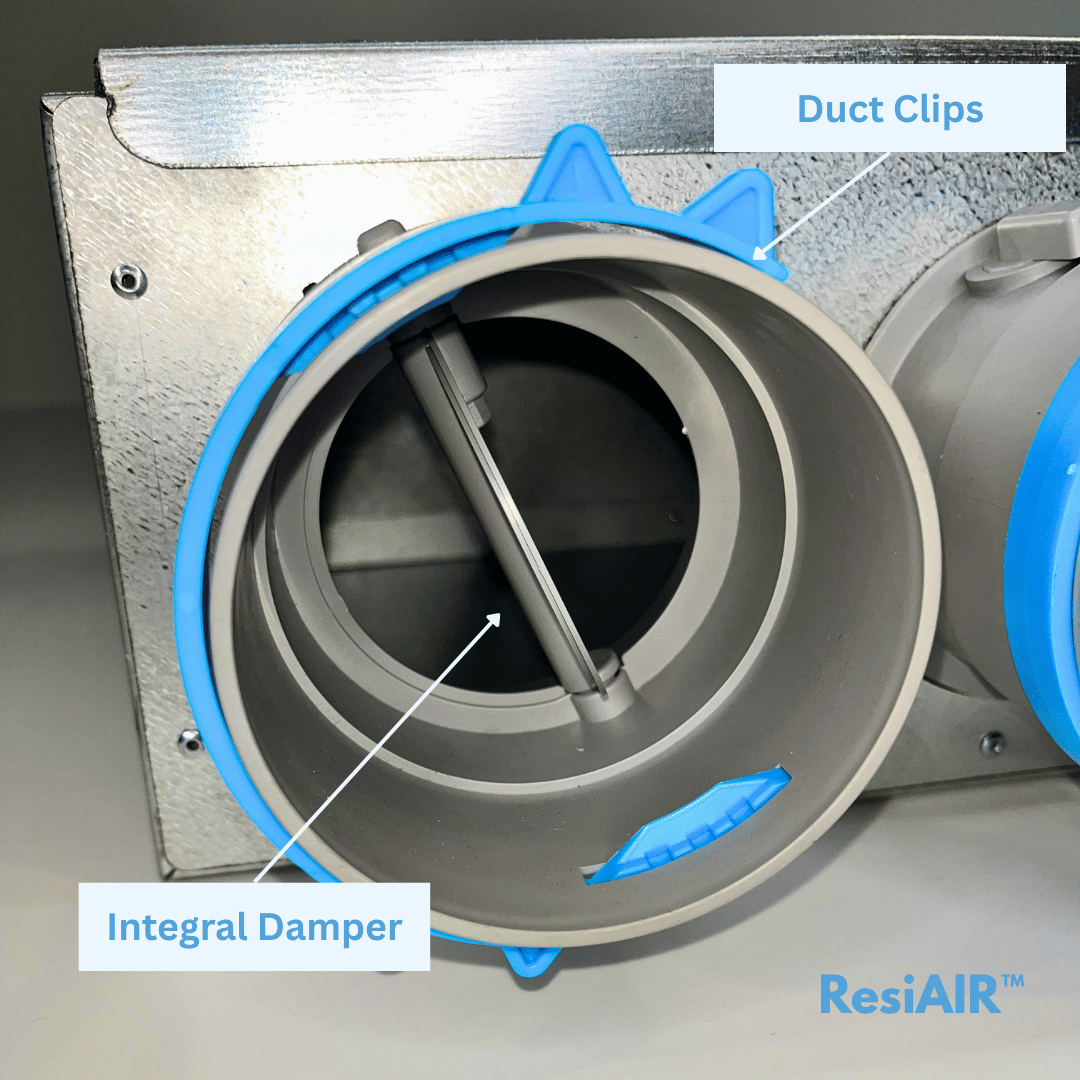

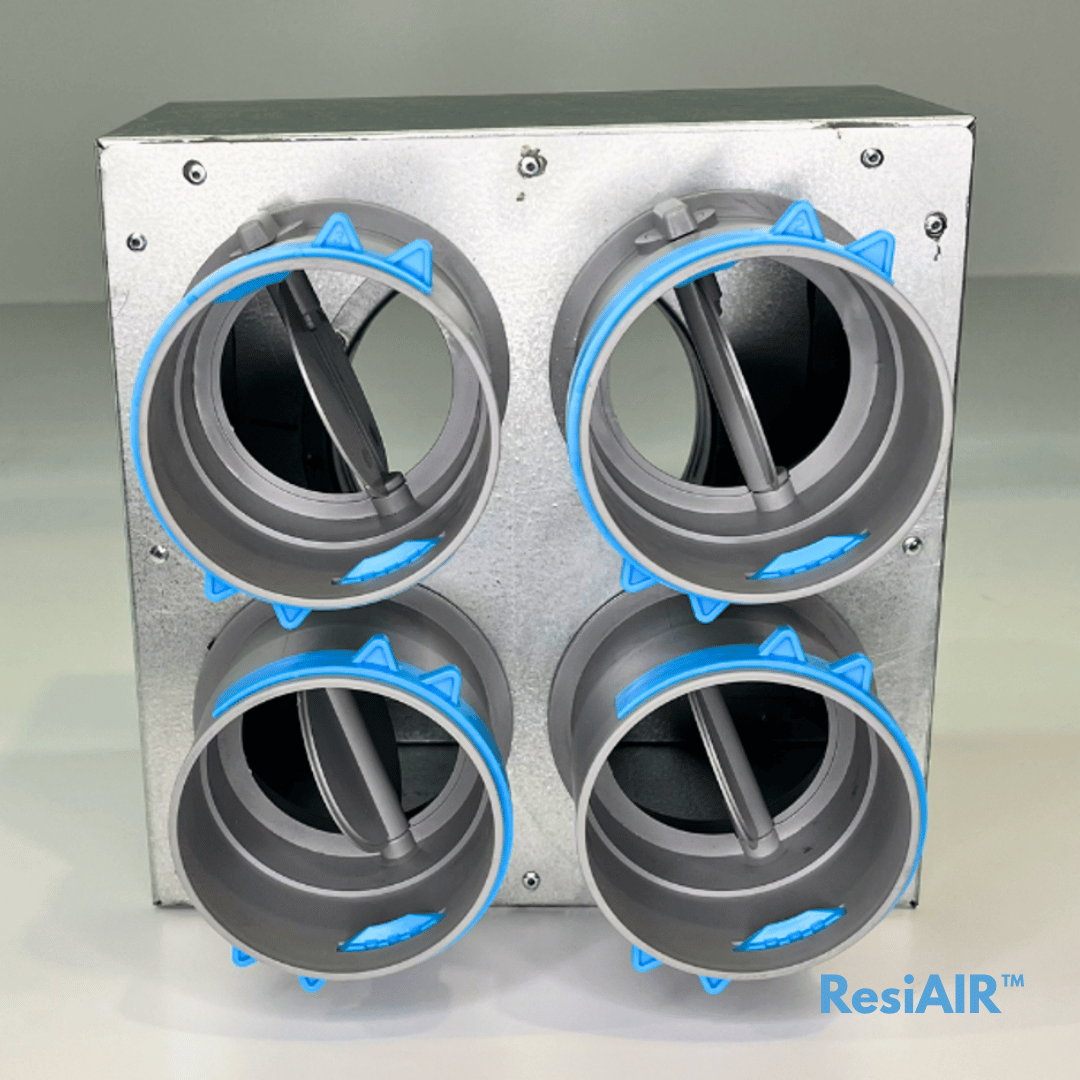

Commissioning Control – Integral commissioning dampers allow individual airflow paths to be adjusted and balanced during system commissioning.
Durable Construction – Manufactured from high-quality materials designed for reliable, continuous use within ventilation systems.
Installation

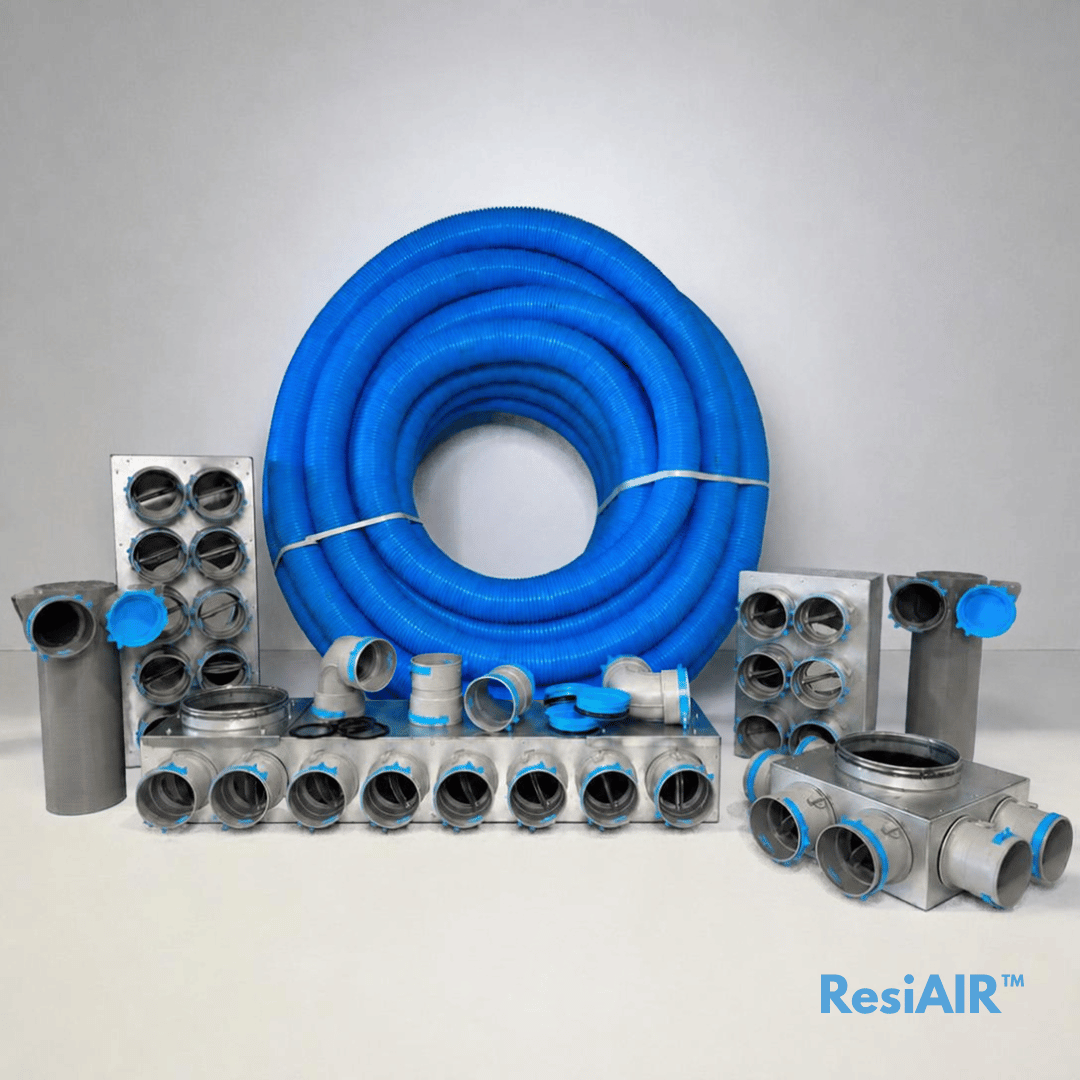

Suitable for use with ResiAIR™ 90mm semi-rigid radial ducting and compatible ventilation components.

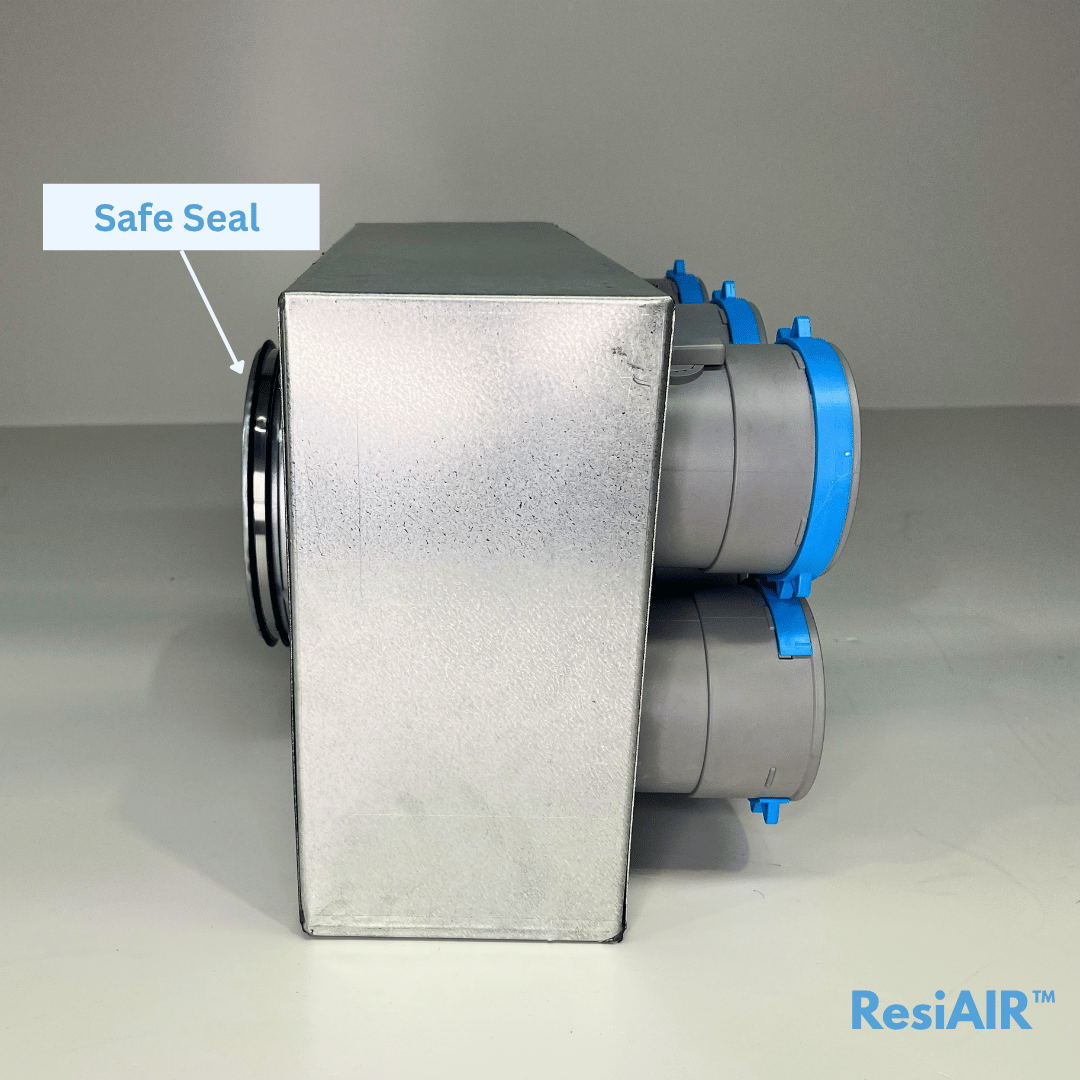

Connect the Main Duct – Connect the manifold to the main ventilation duct using the appropriate duct connection size.
Connect Ducting – Connect the 90mm radial duct runs to the manifold ports using the appropriate sealing rings and click rings to create secure, airtight connections.
Seal Unused Ports – Use suitable blanking caps or end caps on any unused manifold ports to prevent unwanted air leakage and contamination.
Commission the System – Adjust the integral commissioning dampers as required to balance airflow across the connected duct runs.
Check Connections – Ensure all connections are fully secured and sealed before operating and commissioning the ventilation system.
