Performance

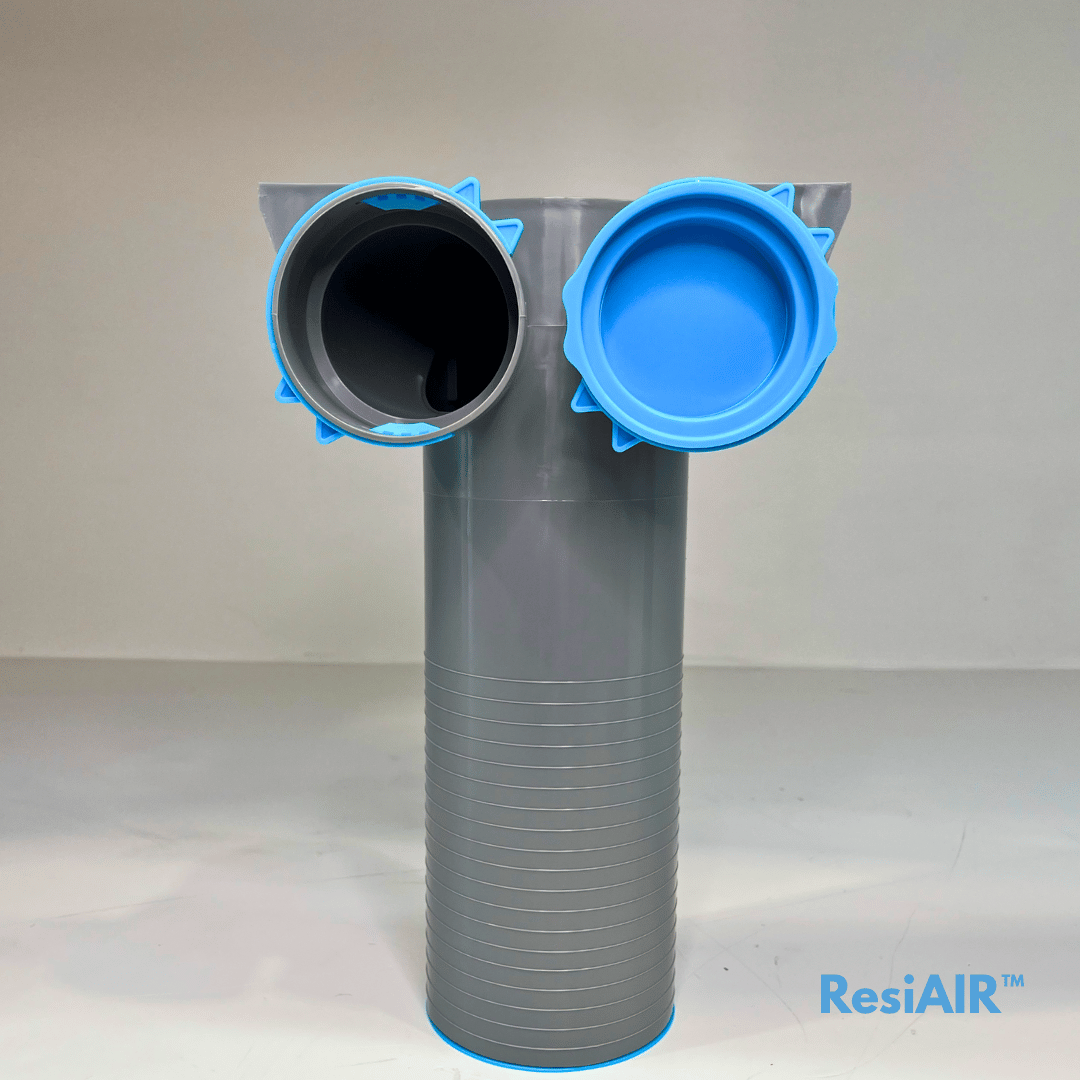

Dual Duct Connection – Allows two 90mm radial duct runs to connect to a single 125mm internal valve connection.
Efficient Airflow Distribution – Provides a practical transition between multiple radial duct runs and a ventilation grille or valve.
125mm Valve Connection – Designed for connection to compatible 125mm internal ventilation valves.
Flexible Installation – Suitable for wall or ceiling installation to accommodate different ventilation system layouts.
Secure Connections – Designed for use with O-ring seals and click rings to create secure, airtight duct connections.
End Cap Included – Supplied with one end cap for sealing an unused 90mm duct connection where required.
Installation
Position the grille housing in the required wall or ceiling location and secure it appropriately.

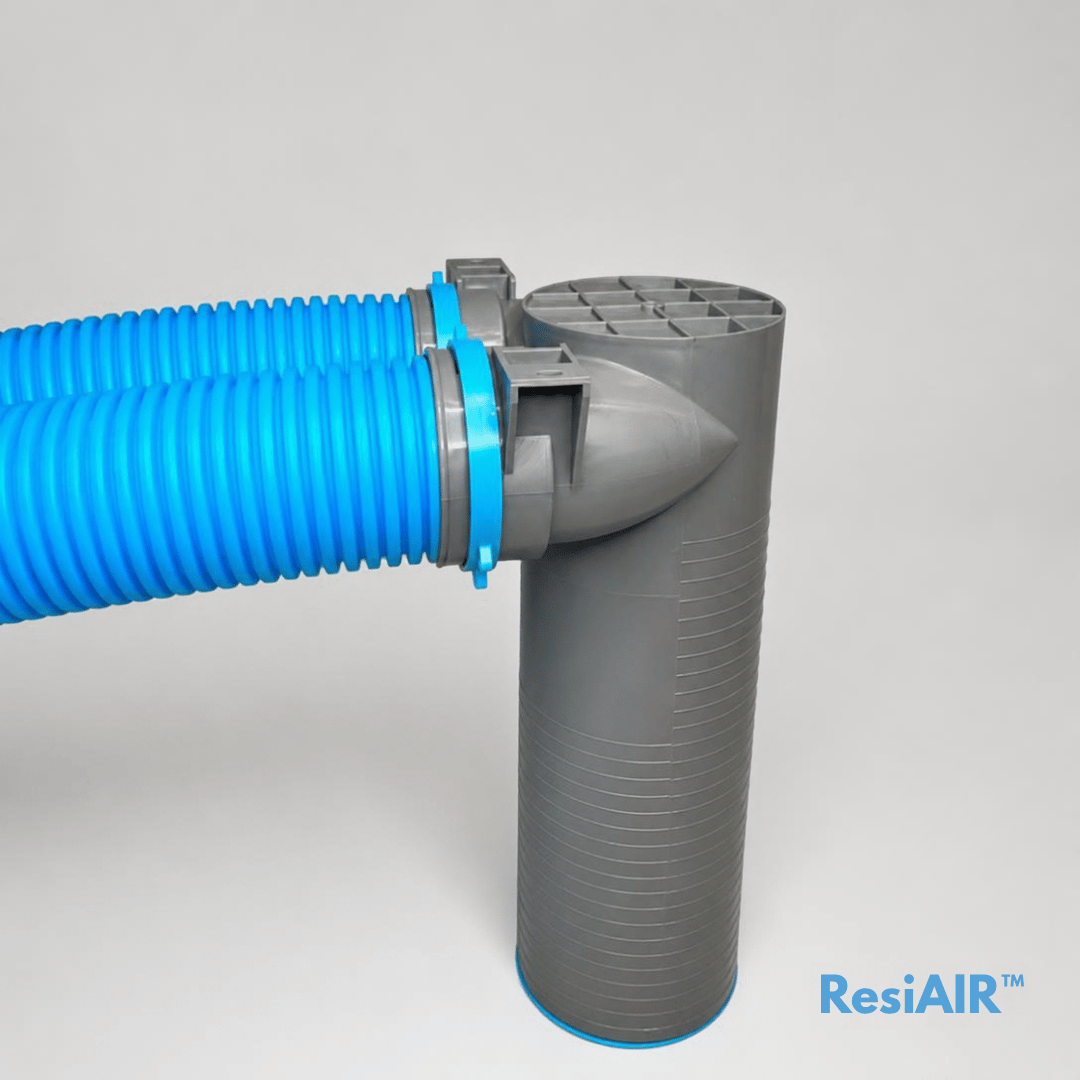

Connect the two 90mm radial duct runs to the available duct connections using the appropriate O-ring seals.
Secure each duct connection using the supplied click rings.
Connect the 125mm internal valve or grille to the housing using the appropriate connection method.
Fit the supplied end cap to any unused 90mm connection where required.
Check all connections are fully secured and sealed before installing the final valve or grille and commissioning the ventilation system.
