FREE MVHR SYSTEM PROPOSAL - SEND DRAWINGS TO SALES@THEAIRSHOP.CO.UK

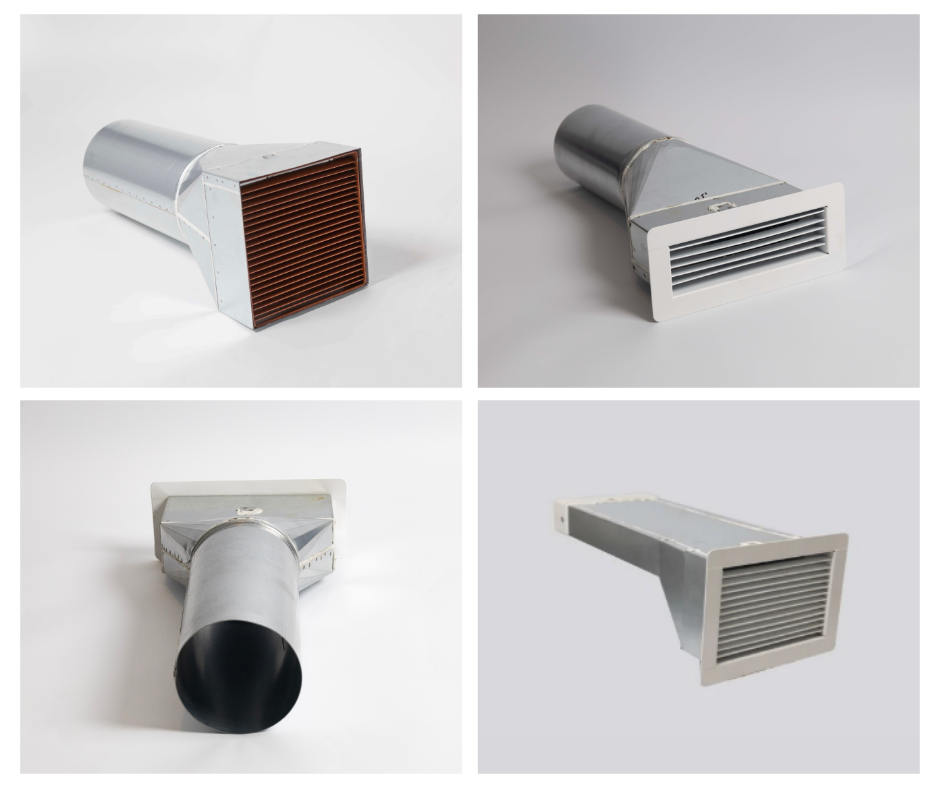

ResiBRICK™ is a range of A1 non-combustible metal air brick and ducting kits designed for external wall terminations and ideal for use with MVHR sytems in residential apartments.
The low resistance airflow metal air brick range offer a wide range of termination sizes and free area performances including 204x60, 220x90 and up to 200mm ∅
A unique mechnical fixing design allows a long lasting permanent fixing to the building unlike perishable adhesives or motar.
In accordance with Approved Document B Volume 2 (2019 edition incorporating 2020/22 amendments), combustible materials have been banned in and on the external walls of buildings in the following instances;
• Residential Buildings over 11m (England & Wales)• Recreational & Assembly Buildings over 18m• Buildings over 11m (Scotland)• Any buildings undergoing unsafe cladding remediation work
The fire resistance classification criteria for construction products is detailed in BS EN 13501w+ A1:2018 and includes a list of products (European Commission 96/603/EC) which, under specified conditions, can be considered to be class A1 without testing. Galvanized steel achieves a fire class A1 rating without the need for testing. This material maintains its strength at elevated temperatures, (melting point range of 1450-1520°C). Classified as A1, it is defined as non-combustible.
11 duct connection sizes available;
Rectangular: 204x60,220x90,300x100,300x125,400x125 (mm)
Circular: 125,150,180,200,250 (mm)
ResiBRICK offers the widest range of duct transition sizes to metal air brick terminations in the UK
The ResiBRICK range offers a wide range of high free air performances - including the largest in the UK, designed to fit to larger ducting, ideal for Part O Overheating compliance;

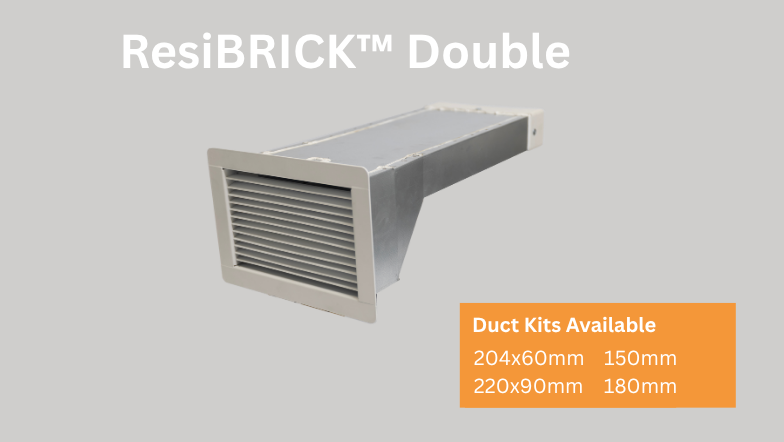

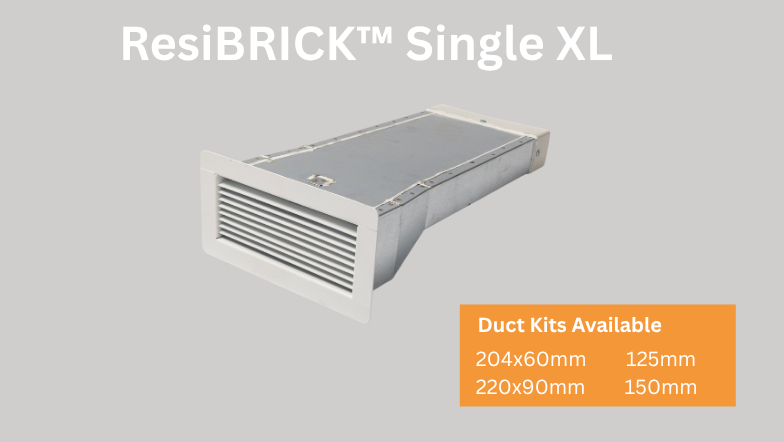

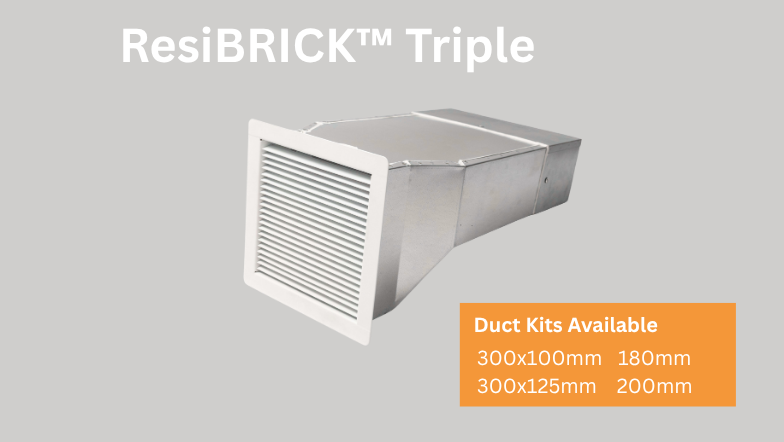

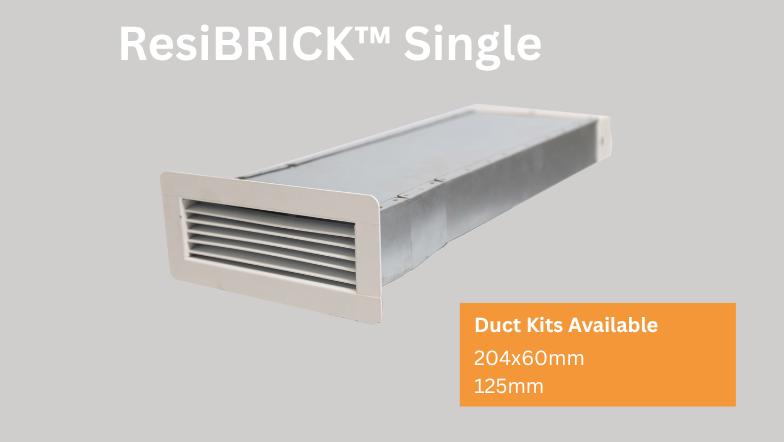

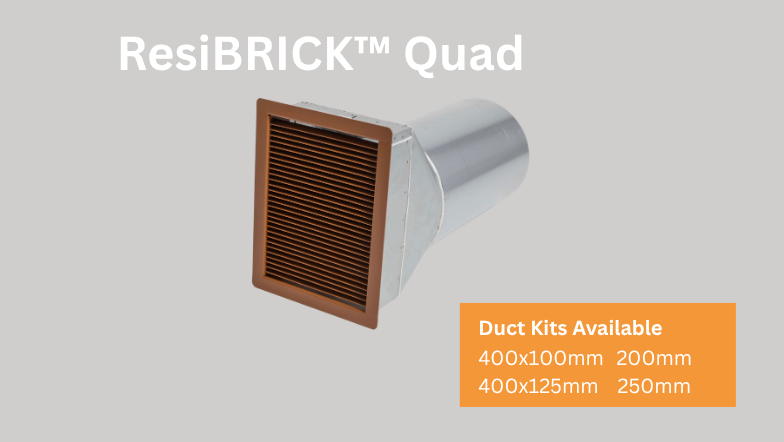

Single - 11,610mm²Single XL - 17,415mm²Double - 25,155mm²Triple - 42,570mm²Quad - 58,050mm²

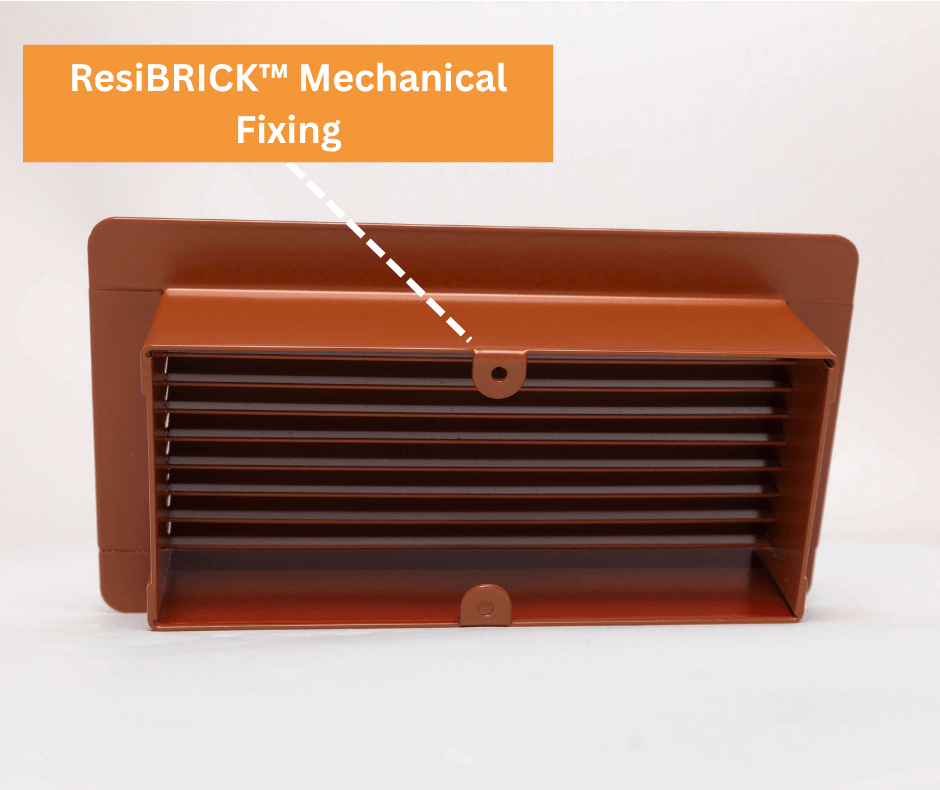

ResiBRICK has been designed with a unique mechanical fixing for longevity, safety and reliability in performance critical environments.
Unlike perishable advehsives or mortar the mechanical fixing ensures the metal air brick stays securly in place, minimising risk of displacement, obstruction or failure.
The ResiBRICK range of fire rated metal air bricks are available with and without picture frames to match the aesthetic finish of the external facade.
5 standard RAL colours available;
RAL 8004 TeracottaRAL 9016 WhiteRAL 8011 BrownRAL 1014 CotswoldRAL 9017 Black
The ResiBRICK™ Fire Rated Air Brick is supplied in 2 parts:
1. A1 Rated Duct Transition
2. A1 Rated Air Brick Assembly
The 2 part fix helps mamage the product installation between differing trades whilst protecting the air brick assembly from damage on-site or insitu before works have been completed.

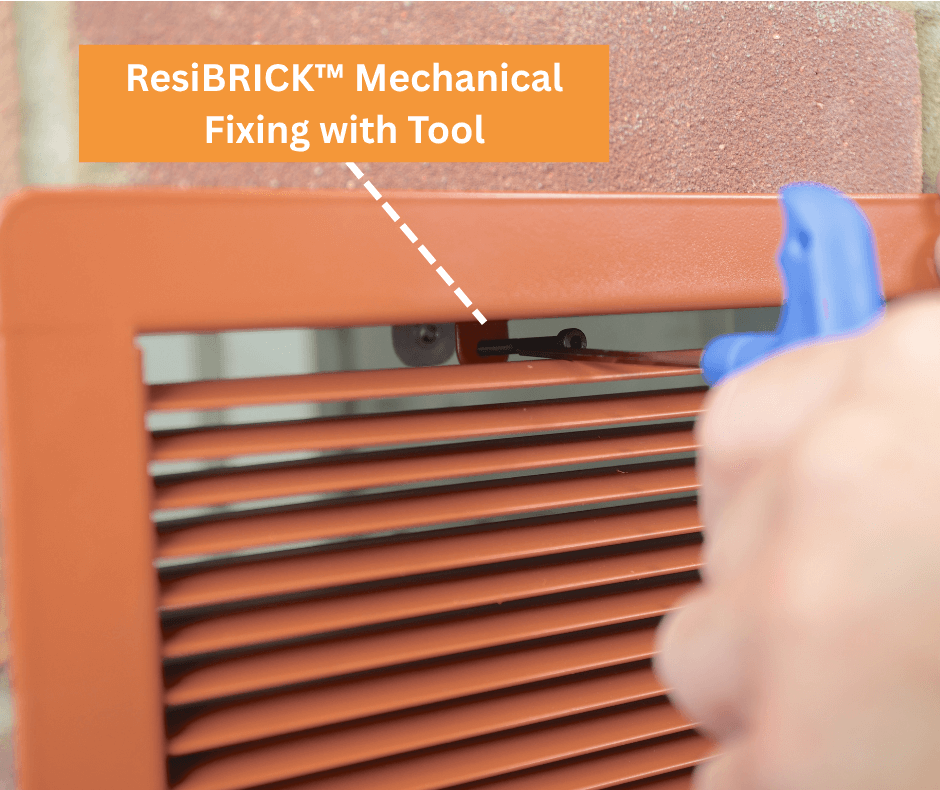

ResiBRICK™ is designed with unique mechanical fixing for security and long term performance.
1. Screws are provided with the 1st fix ducting transition
2. Align the fixing points and fasten together using the tool provided
The mechanical fixing aids a secure long lasting fix to the building which can be completed by a quickly and efficiencly on site.

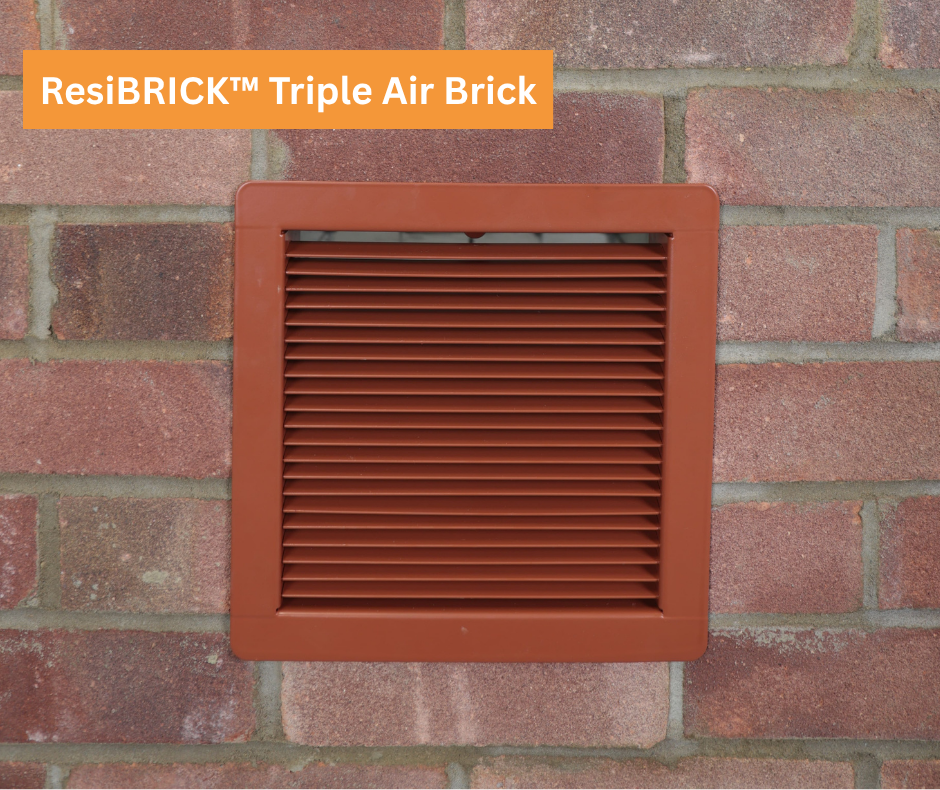

The ResiBRICK™ Fire Rated Air Brick range has been designed to match UK Brick sizes to compliment aesthetic requirements on the external facade of the building.
A full range of technical and product related information is available for the ResiBRICK™ Range:
ResiBRICK Product Brochure
ResiBRICK Single A1 Fire Rated Air Brick Technical Data Sheets
ResiBRICK Single XL A1 Fire Rated Air Brick Technical Data Sheets
ResiBRICK Double A1 Fire Rated Air Brick Technical Data Sheets
ResiBRICK Triple A1 Fire Rated Air Brick Technical Data Sheets
ResiBRICK Quad A1 Fire Rated Air Brick Technical Data Sheets
Pinnacle HVAC Solutions
Do you require A1 Rated Air Brick Terminations?Get in touch to discuss pricing and lead times - bespoke colours, finishes and A1 ducting transitions also available
