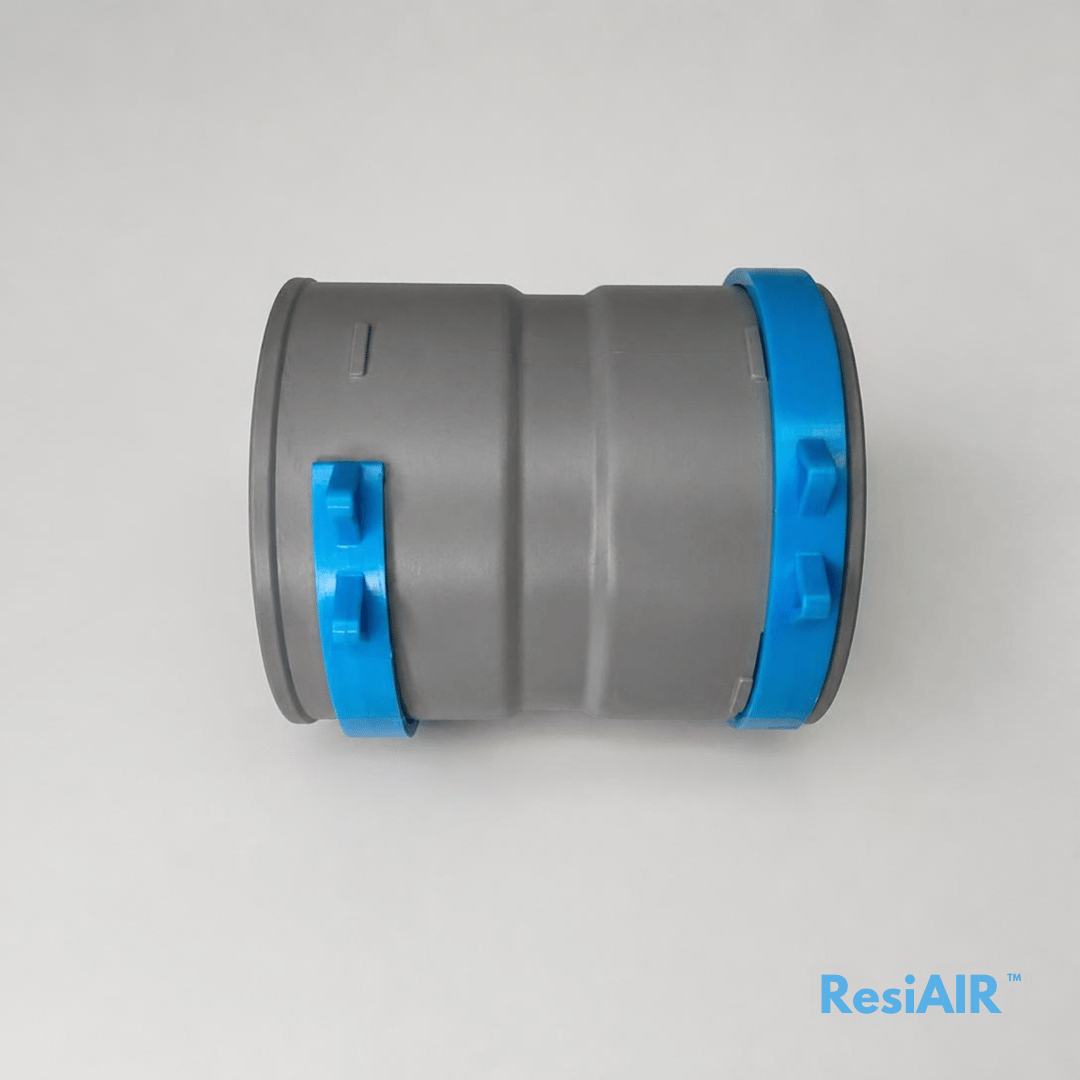

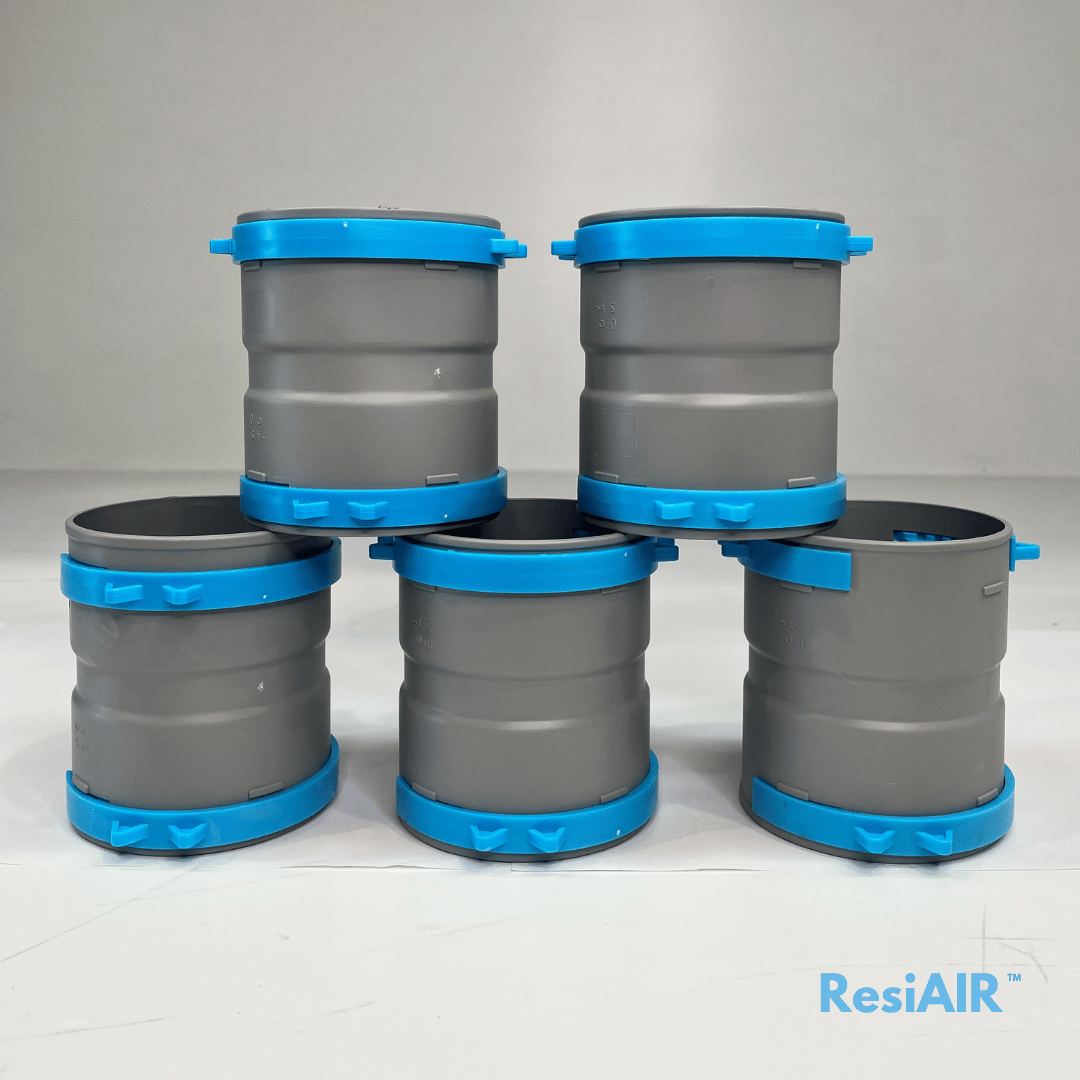

ResiAIR™ 90mm, pipe connector

Performance

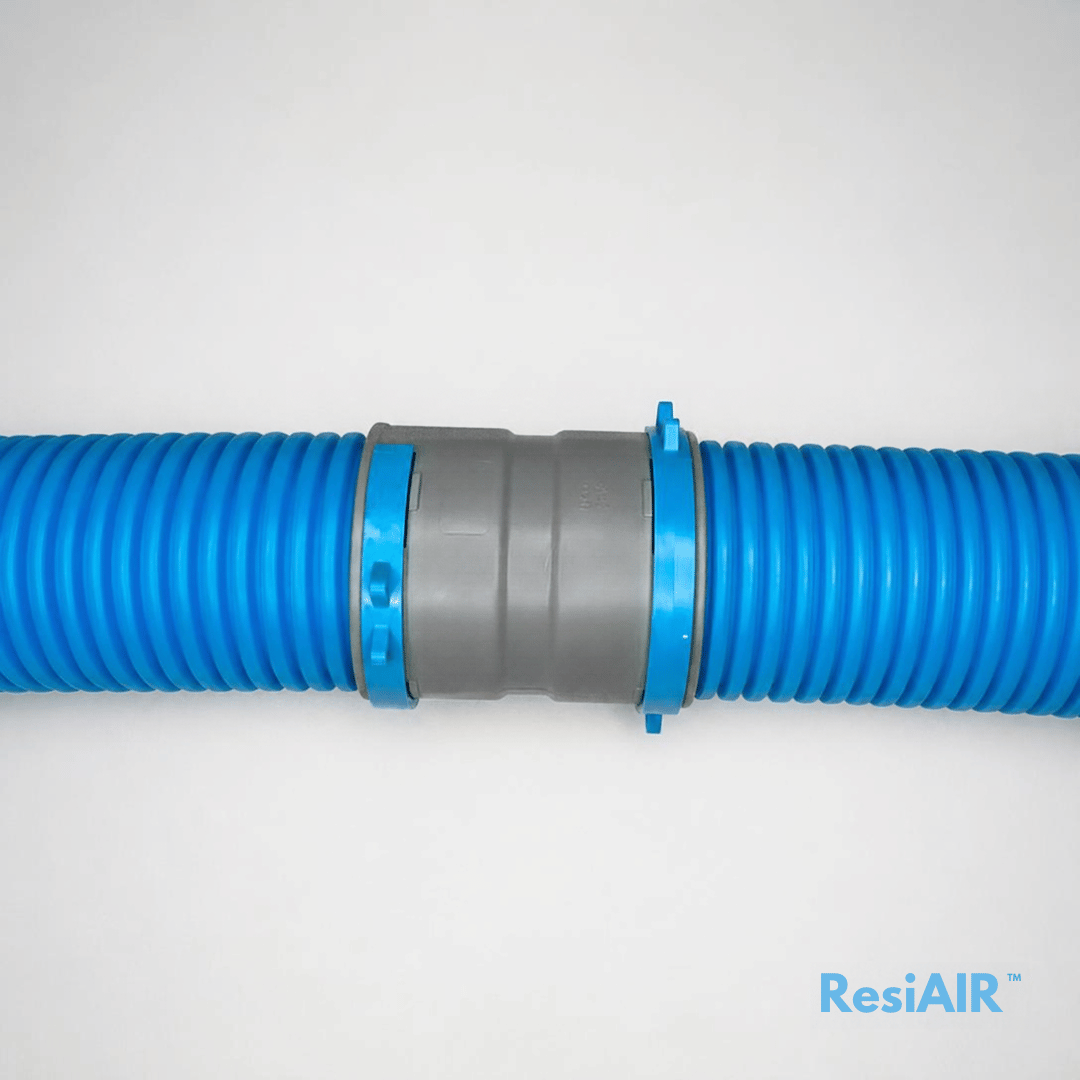

Straight Duct Connection – Provides a simple and reliable connection between two lengths of 90mm semi-rigid radial ducting.

90mm Compatibility – Designed for use with ResiAIR™ 90mm semi-rigid radial ducting and compatible connection components.

Airtight Connection – Designed to work with O-ring seals and click rings to create secure, airtight duct connections.

Flexible System Layouts – Allows duct runs to be extended or connected where required within the ventilation system.

Durable Construction – Manufactured from robust materials designed for reliable use within ventilation systems.

Installation

Fit an appropriate O-ring seal to the end of each 90mm semi-rigid duct section.

Insert the duct sections fully into opposite sides of the pipe connector.

Secure each connection using the appropriate click ring.

Ensure both duct sections are correctly positioned and fully inserted into the connector.

Check all connections are fully secured and sealed before operating and commissioning the ventilation system.
