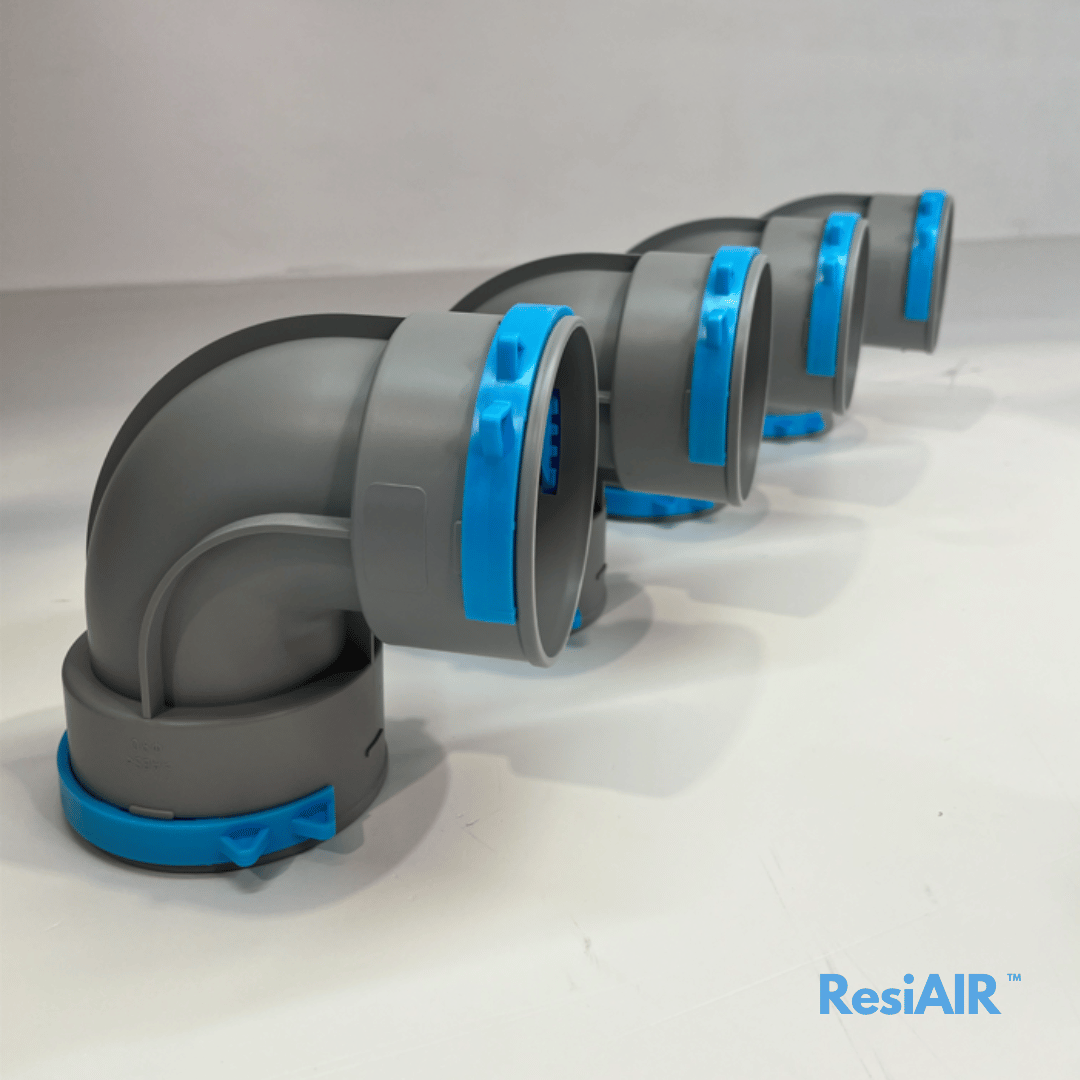

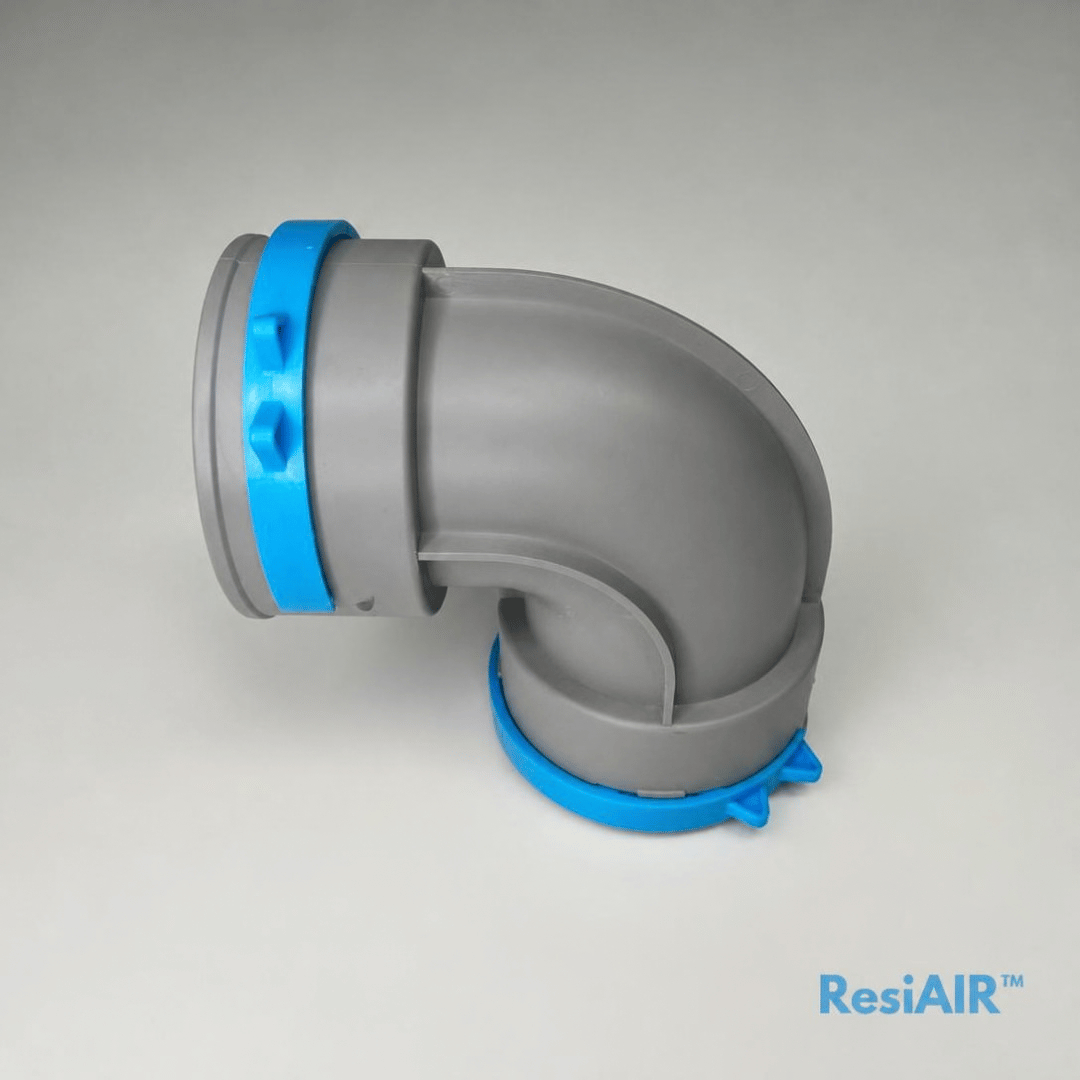

ResiAIR™ 90mm, 90° bend

Performance

90° Direction Change – Allows 90mm semi-rigid radial ducting to change direction efficiently within the ventilation system.

Flexible Installation – Helps route ductwork around obstacles and through areas where installation space is restricted.

90mm Compatibility – Designed for use with ResiAIR™ 90mm semi-rigid radial ducting and compatible connection components.

Secure Connection – Provides a reliable connection when used with the appropriate O-ring seals and click rings.

Space-Saving Design – Enables neat and practical routing of radial duct runs without requiring a large bend radius.

Installation

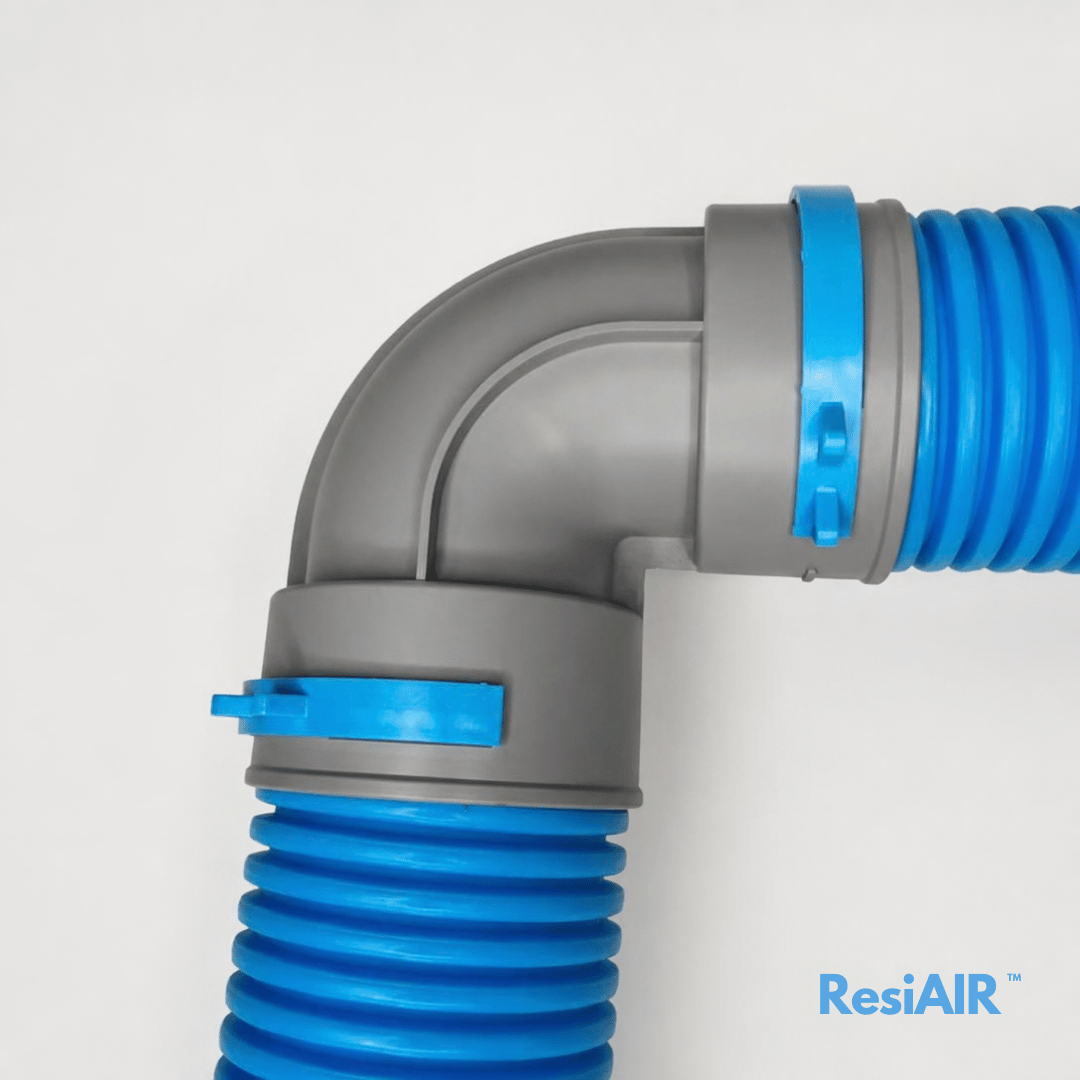

Connect the 90° bend to the required 90mm semi-rigid duct run.

Fit the appropriate O-ring seal to the end of the duct before inserting it into the bend.

Push the duct fully into the connection and secure using the supplied click ring.

Use the bend to redirect the duct run through the required 90° angle.

Check all connections are fully inserted, secured and sealed before operating and commissioning the ventilation system.
