Semi rigid ducting for mvhr

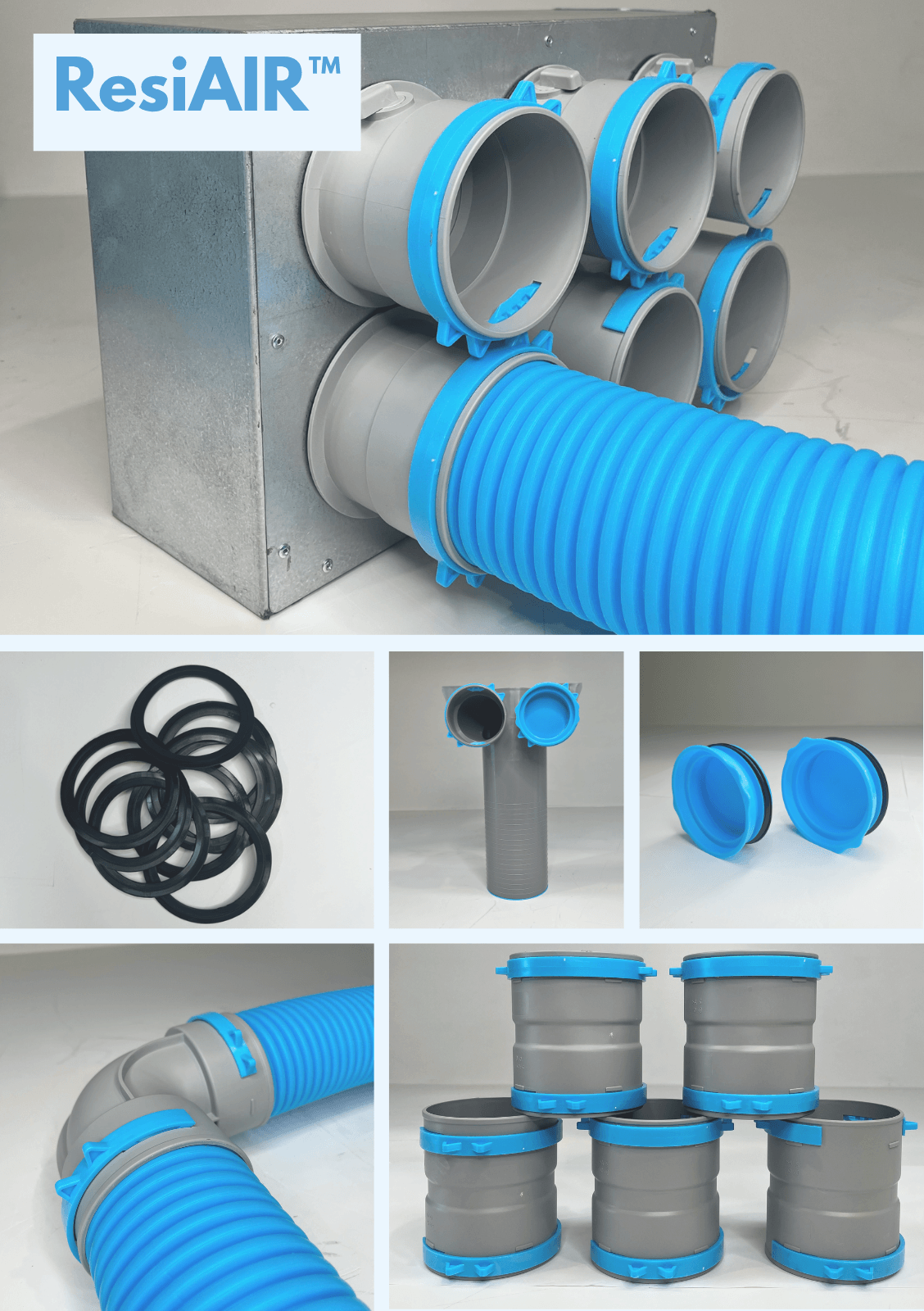

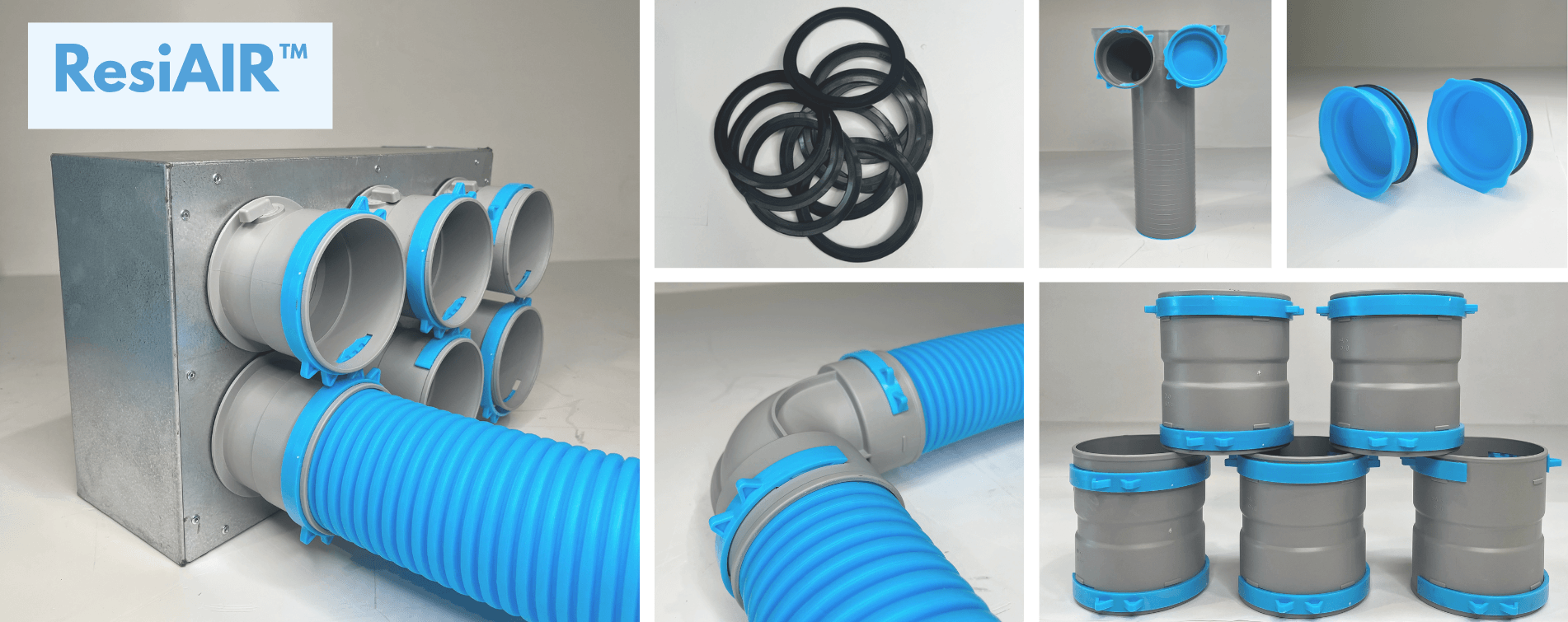

ResiAIR is a brand new MVHR semi rigid ducting system, ideal for small and large houses - offering unique features and manufactured to a high quality - all in the name of quiet airflow and easily achieving installed performance for the home.

Here's what you should know:

Radial Air Distribution

The perfect low noise MVHR ducting solution.

Semi rigid ducting, also know as radial ducting uses dedicated runs to each room from a central manifold for supply and extract air.  As the name suggests, the semi rigid ducting is a flexible solution that you cut to length, connect to the manifold and bend and shape to run to the air valve housing.

Instead of one duct branching repeatedly, and lots of parts connected to each other, the air is split just once at the manifold and goes straight to its destination. This helps to reduce resistance as well as the number of connections within the ducting system, always a risk for air leakage.

Available in 90mm only as it means less ducting and reduced resistance. Why?

Semi Rigid Ducting Range Info

Faster install

No sealants, glues or tapes required - two connections per run of ducting from manifold to in room valve housing.   Click fit and secure with clips.

No cross talk

Treats every duct run on it's own terms - rather than a main duct that tee off to each room,  increasing the flow of noise from room to room.

Cleanable

Semi-rigid ducting is manufactured with smooth internal lining that make the ducting easy to keep clean once installed using specially designed brushes.

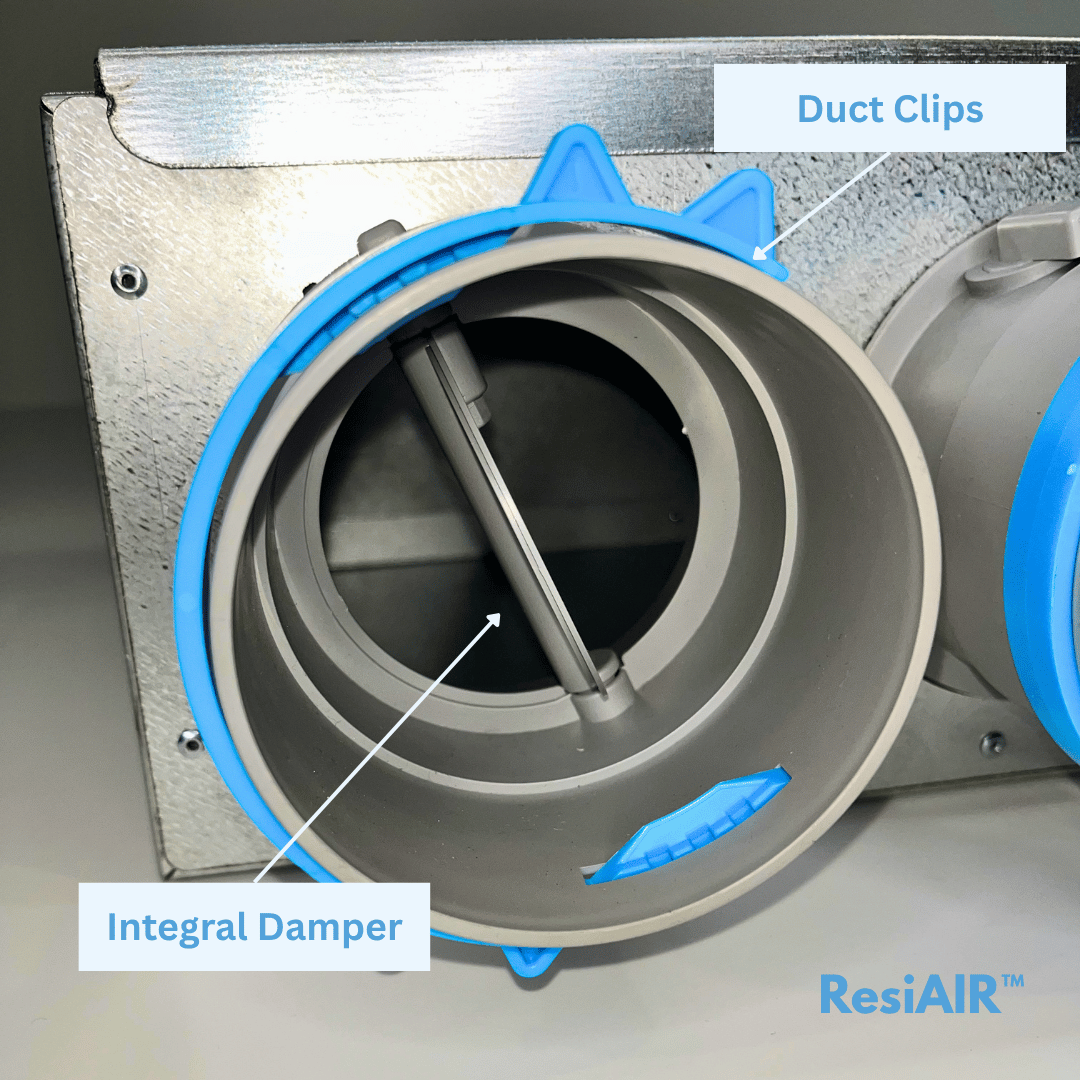

The Unique INTEGRAL DAMPER

It's commissioing without the cardio - reduce back and forth to the valves!

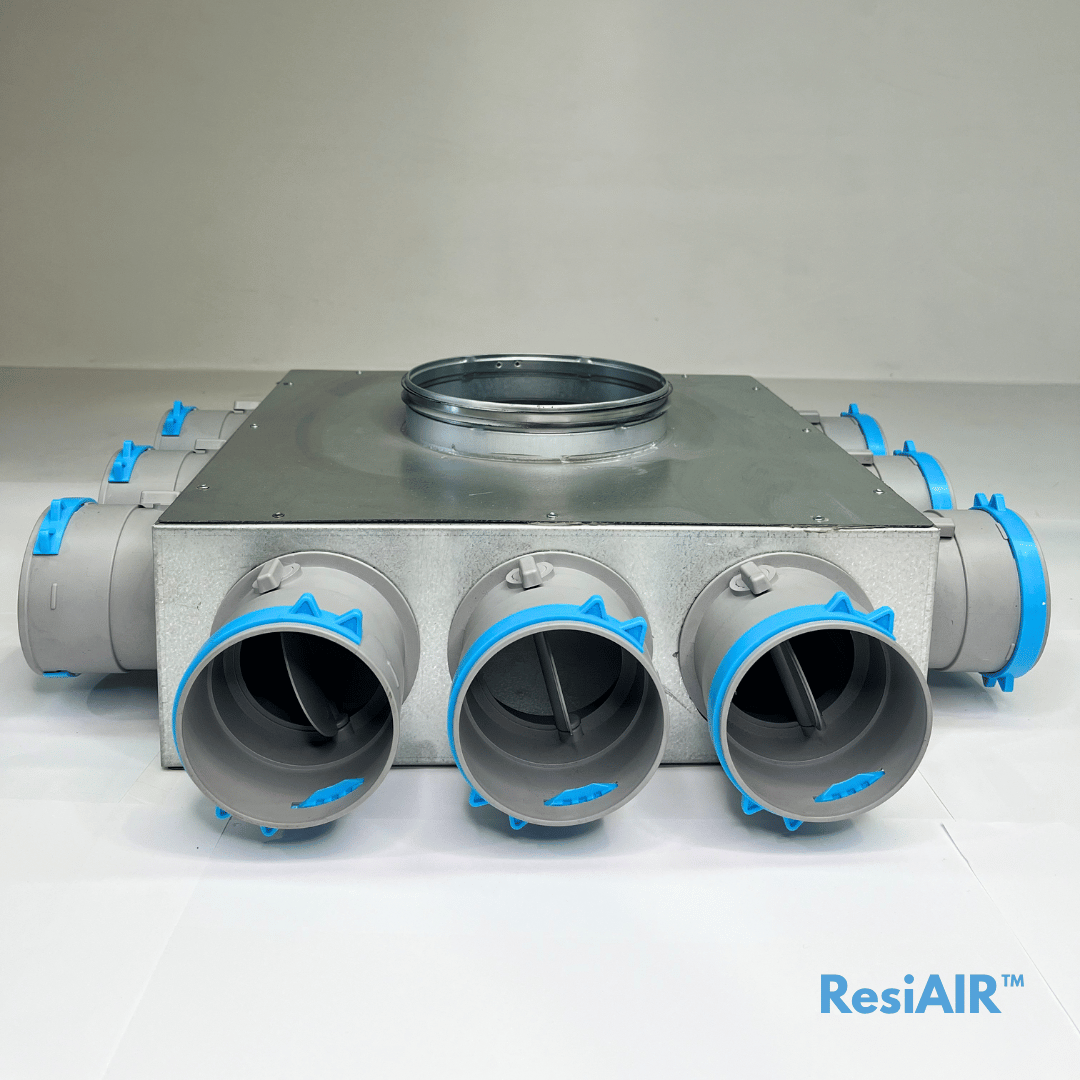

ResiAIR™ Manifolds are manufactured with unique integral dampers on every port.
This allows for faster, easier and more accurate commissioning of the semi rigid ducting system – set the balance at the source, then fine tune at the valve.

Download REsiAIR Brochure
The Unique INTEGRAL DAMPER

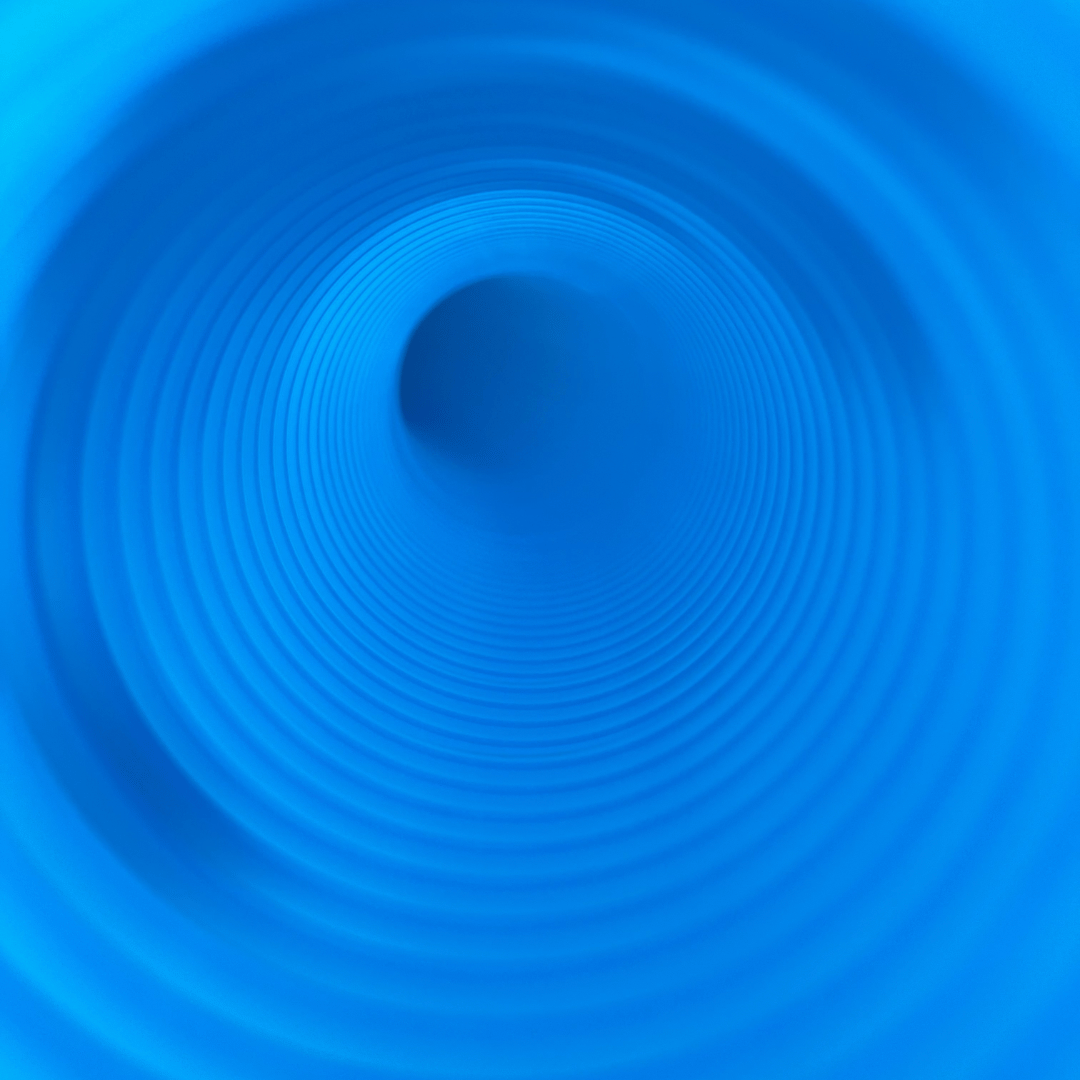

90mm v 75mm

Don't choke the system - less resistance, less ducting

All ResiAIR™ manifolds and the full range is available in 90mm which has around 45% more internal area than a 75mm duct, allowing it to carry more air with less resistance, and means single runs, not double to valves (less ducting - less cost!)

Find out more
90mm v 75mm

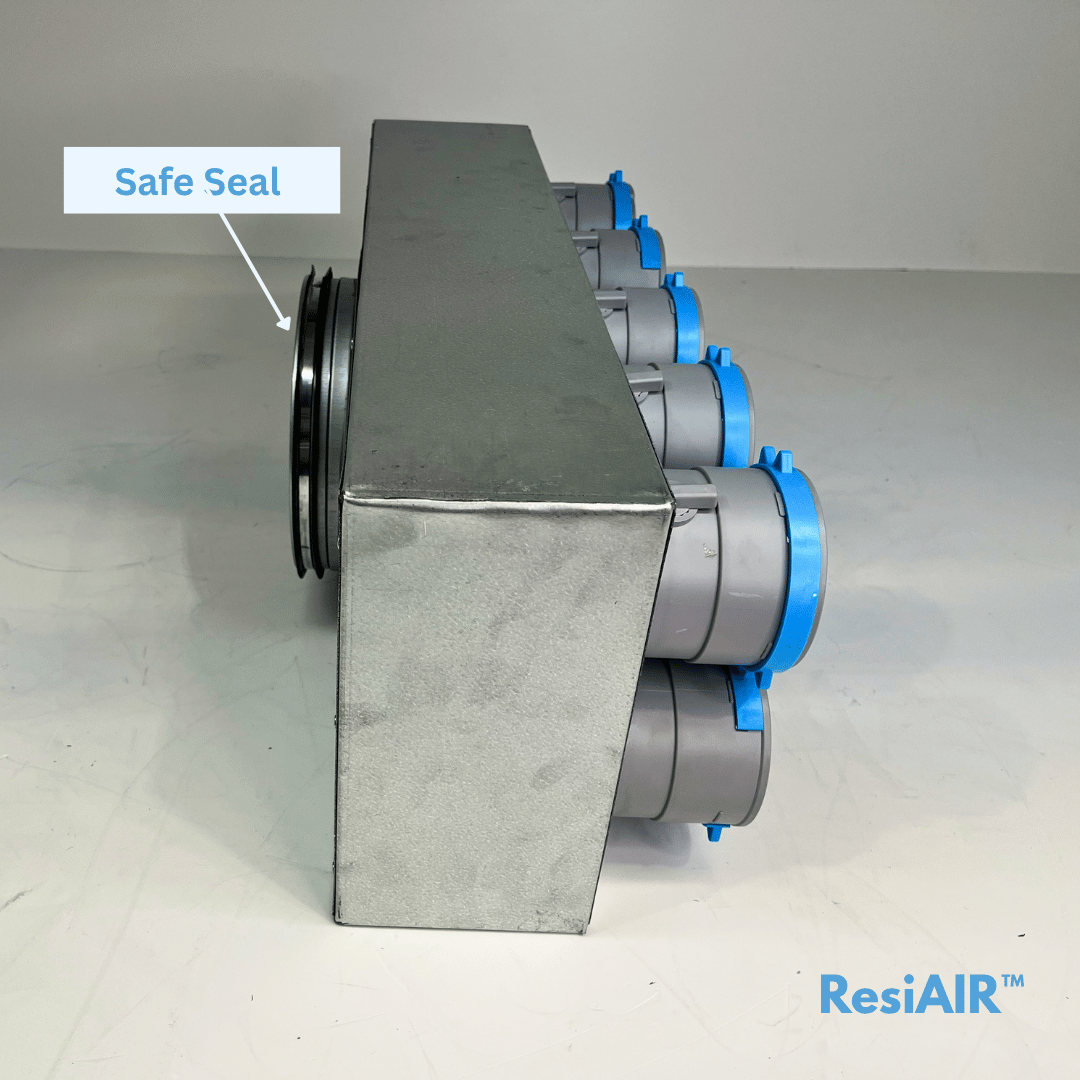

SAFE SEAL CONNECTION

It's a simple mantra - what happens in the duct stays in the duct.

ResiAIR™ is engineered with two features that help elimiate air leakagw -  clips included for manifold-to-duct connections, and safe-seal connections on the main duct to eliminate leakage.

SAFE SEAL CONNECTION

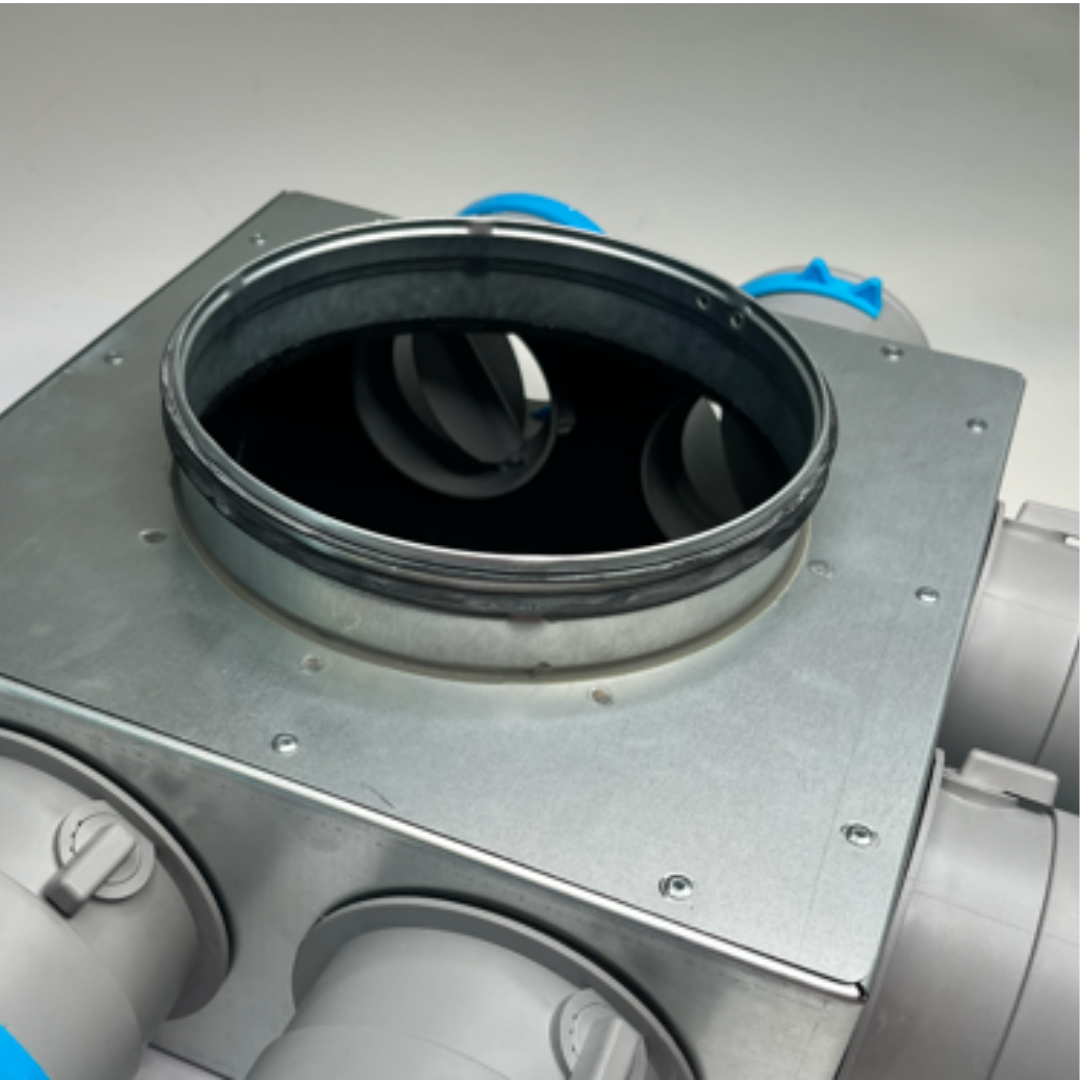

ACOUSTIC LINING

Sharing the air, but not the noise.

All ResiAIR™ manifolds are acoustically lined with sound absorbing material to help maintain low noise throughout the system as standard.

ACOUSTIC LINING


Think ResiAIR™ is the solution for your MVHR project?

A radial MVHR distribution system runs one dedicated length of semi-rigid ducting from a central manifold to every single terminal in the property – every valve, every room.

Think The Air Shop's ResiAIR™ semi-rigid ducting system might be the right solution for your MVHR project?

Get in touch with one of our experts today!

Send My Plans
Think ResiAIR™ is the solution for your MVHR project?
