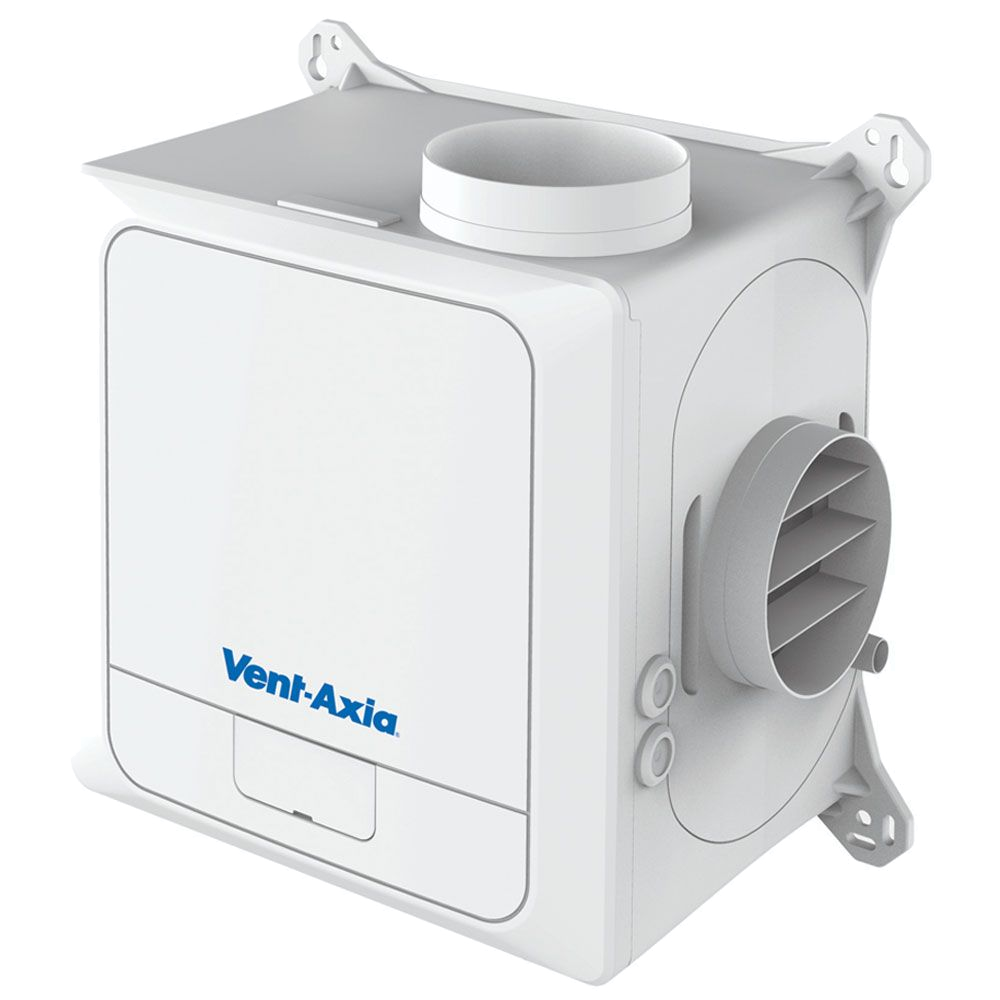

Vent-Axia Multivent Lo-Carbon MVDC Mechanical Extract Ventilation (MEV) Unit

£238.00

Variation

Quantity

MEV Delivery - 2-3 working days £30.00

The MVDC-MS unit from Vent-Axia features three fully variable speeds: normal, boost and purge. The unit can extract up to 118l/s and has 7 years warranty. The digital display allows installers to accurately set airflow, ensuring exactly the right ventilation rate. Accurate speed control helps minimise noise and energy consumption. Ideal for loft or cupboard mounting. Perfect for multi-room extract ventilation. Boosted via light switch (switch live) or wired/wireless boost switch. Is your loft cold or warm? (cold has only some insulation in the floor) - if the answer is cold, you will insulated ducting to avoid warm air condensing in the ducting before it is expelled. CALL US to discuss you project on 0330 223 6776

General Info

Centralised mechanical extract systems (c-MEV) also known as a Multipoint and Central Extract System draw moisture-laden air from multiple wet rooms of a property, essentially the concept is to provide simultaneous, low level extraction from kitchens, bathrooms, shower rooms, utility rooms and toilets to a central extract fan typically located in a loft space or hallway cupboard via a system of ductwork and grilles to control humidity levels. The extracted air is then normally discharged to outside via a single duct and grille/cowl.

Product Info

Important Documents & Information

Vent Axia Multivent User Guide
Vent Axia Multivent Installation & Commissioning

Key Features & Benefits of the Vent Axia Multivent Range

Variable speed settings
Ultra-quiet - acoustically lined for low noise levels
Complies with Building ADF (System 3)
Option of wall, ceiling, and loft mounting
Long life, low energy multispeed DC motor
Max Airflow of 118l/s
Extract from up to 7 wet rooms (depending on duct run resistance)
Best in class Specific Fan Power (SFP) as low as 0.15 wls
Dimensions (H x W x D) 310mm x 360mm x 249mm
Fitted with four extract 125 or 100mm diameter spigots allowing quick connection to ducts
Fully variable normal and boost speeds
Fully serviceable unit with all parts accessible
Excellent 7 YEAR standard warranty
Manufacturers Part Codes: 437634C, 443298B

Controllability

The speed selector allows accurate setting of airflow during installation and commissioning
The unit has 3 fully variable speeds - trickle, boost and purge which are controlled via switch live (light switch) wiring, and automatic humidity sensing (MSH Model)

Delivery

The Air Shop use DPD to send items up to 30kg
All DPD deliveries can be tracked and traced.
Delivery date will be advised within 24 hours on completion of order and is based on stock availability
Delivery is available Monday – Friday
DPD will advise you in advance of the one hour delivery timeslot
You can track your parcel all the way to you on a live map with a countdown to the final 15 minute timeslot
If delivery is not convenient you can opt for the unit to be left in a safe place or delivered to neighbour.

For orders over 30kg

The Air Shop use UPS to deliver larger items over 30kg
All UPS deliveries can be tracked and traced
Delivery date will be advised within 24 hours on complete of order and is based on stock availability
Delivery is available Monday – Friday
UPS will advise you in advance of the one-hour delivery timeslot

Larger Pallet and Multiple Unit Orders

If you are placing an order for multiple units that require a pallet delivery, we will provide a separate quotation for this.

Collection
You are welcome to collect your order from us.
Please call us on 033 0223 6776 or email sales@theairshop.com to confirm that the items are in stock and to agree a collection date/time.

We will then aim to have your order ready for you.

Operating Hours:

Monday – Friday: 8am - 5.30pm

Our address is: 13 Market Road, Richmond, London, TW9 4LZ

Back Orders

If your item is not in stock, we will back order it for you. You will always be emailed with the option to cancel your order if you would rather not wait.

Returns

Returns are accepted on fully packaged/unopened products or where products are faulty.

Returns must be advised within 14 days of order receipt For all returns – please email sales@theairshop.co.uk using your order number in the subject title and details/reason for the return.

When the refund is accepted by our team, please return your items (at your cost).

Once received, we will confirm and a refund credit will be applied to your original method of payment within 5 working days.

Returns must be sent within 28 days of receiving your order otherwise we are unable to offer an exchange or refund.

Specifications

Max Airflow: 118l/s
Rooms: Can extract up to 7 rooms - calculations and duct resistance will need to be calcualted
Dimensions (H x W x D) 310mm x 360mm x 249mm
Ducting: Fitted with four extract 125 or 100mm diameter spigots allowing quick connection to ducts, ideal for rigid ducting
Insulated Ducting: Required if loft is 'cold' - insulation only in the floor
Speeds: Fully variable normal and boost speeds
Warranty: Excellent 7 YEAR standard warranty
Manufacturers Part Codes: 437634C (MS Model), 443298B(MSH Model)
