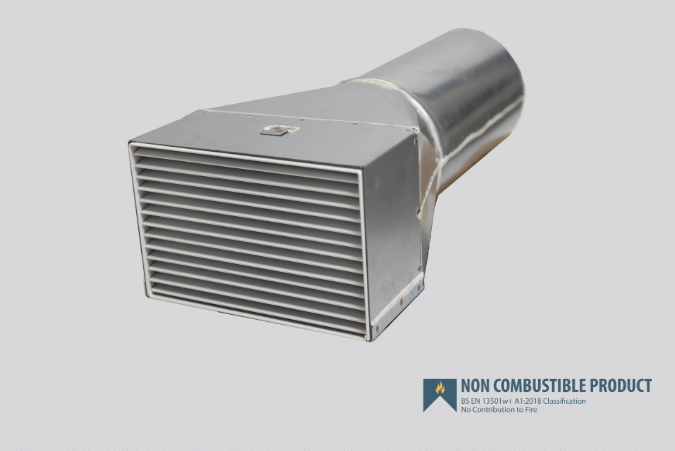

Pinnacle ResiBRICK A1 Fire Rated Metal Double Air Brick Kit- 150mm

Model

Quantity

Fire rated air brick and duct transition kits for residential buildings.

Designed to be built into external wall types during construction in accordance with Approved Document B (Fire Safety)

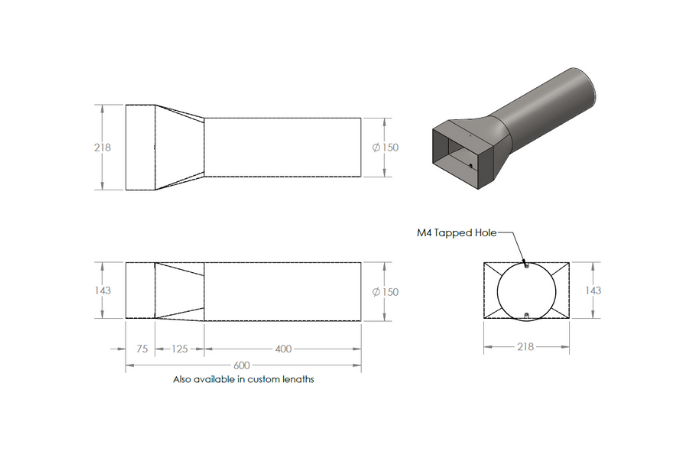

Fire Rated Air Brick and Ducting Kit – 600mm A1 Ducting
Kit Supplied in 2 parts: 1^st Fix Ducting and 2^nd Fix Air Brick Assembly
Unique mechanical fixing for safe and secure installations
Class A1: 0.9mm hot dipped galvanised steel considered a non-combustible material (Class A1 without testing) in accordance with European Commission paper 96/603/EC (referenced in BS EN 13501w+ A1:2018)

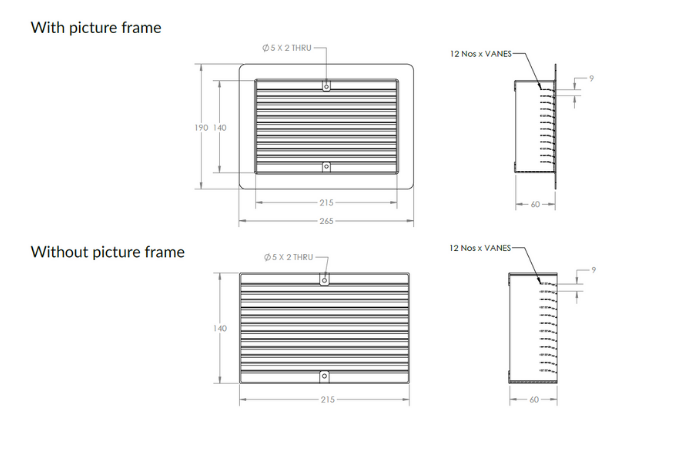

5 Fire Rated Air Brick Sizes
11 Duct transition and connections sizes from 204x60mm – 400x125mm and 125mm – 250mm
Independently tested by BRE

Key Product Information:

Unique mechanical fixing - eliminating the need for perishable sealants
Kit supplied in 2 parts (1^stFix Duct Transition & 2^nd Fix Air Brick)
PVC Connector for simple integration with internal duct
Class A1: 0.9mm hot dipped galvanised steel considered a non-combustible material (Class A1 without testing) in accordance with European Commission paper 96/603/EC (referenced in BS EN 13501w+ A1:2018).

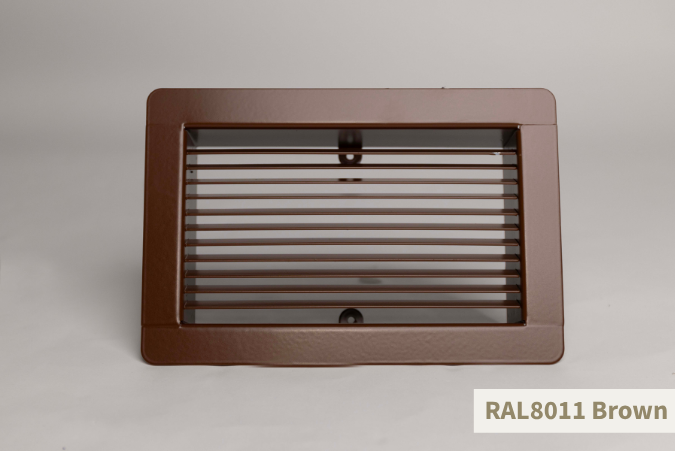

RAL powder coating finish – EN13501-1 Classification Class A2-s1,d)0
Product Performance (tested by BRE)

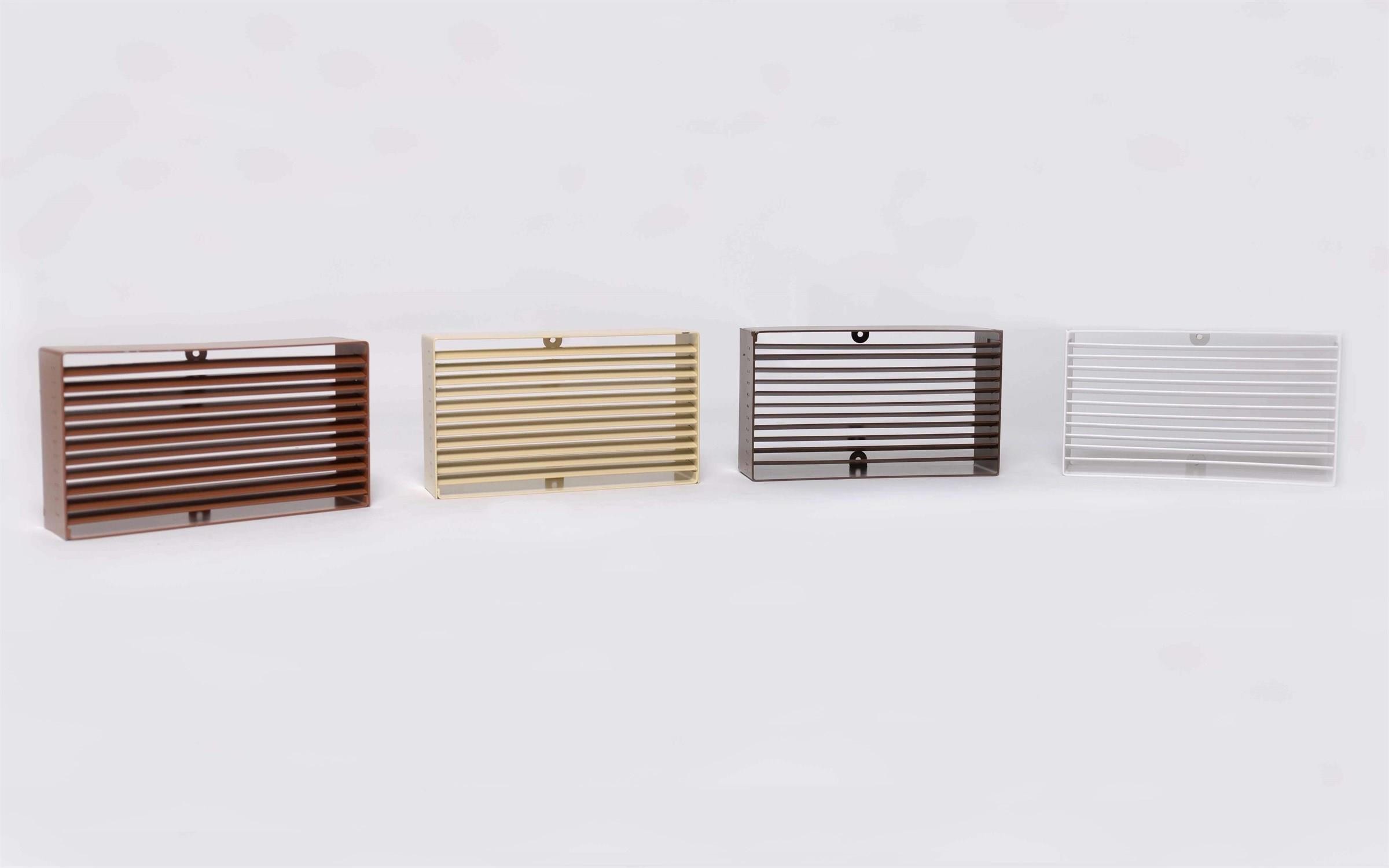

For large quantity orders and bespoke colours please contact us at sales@theairshop.co.uk

Specifications
