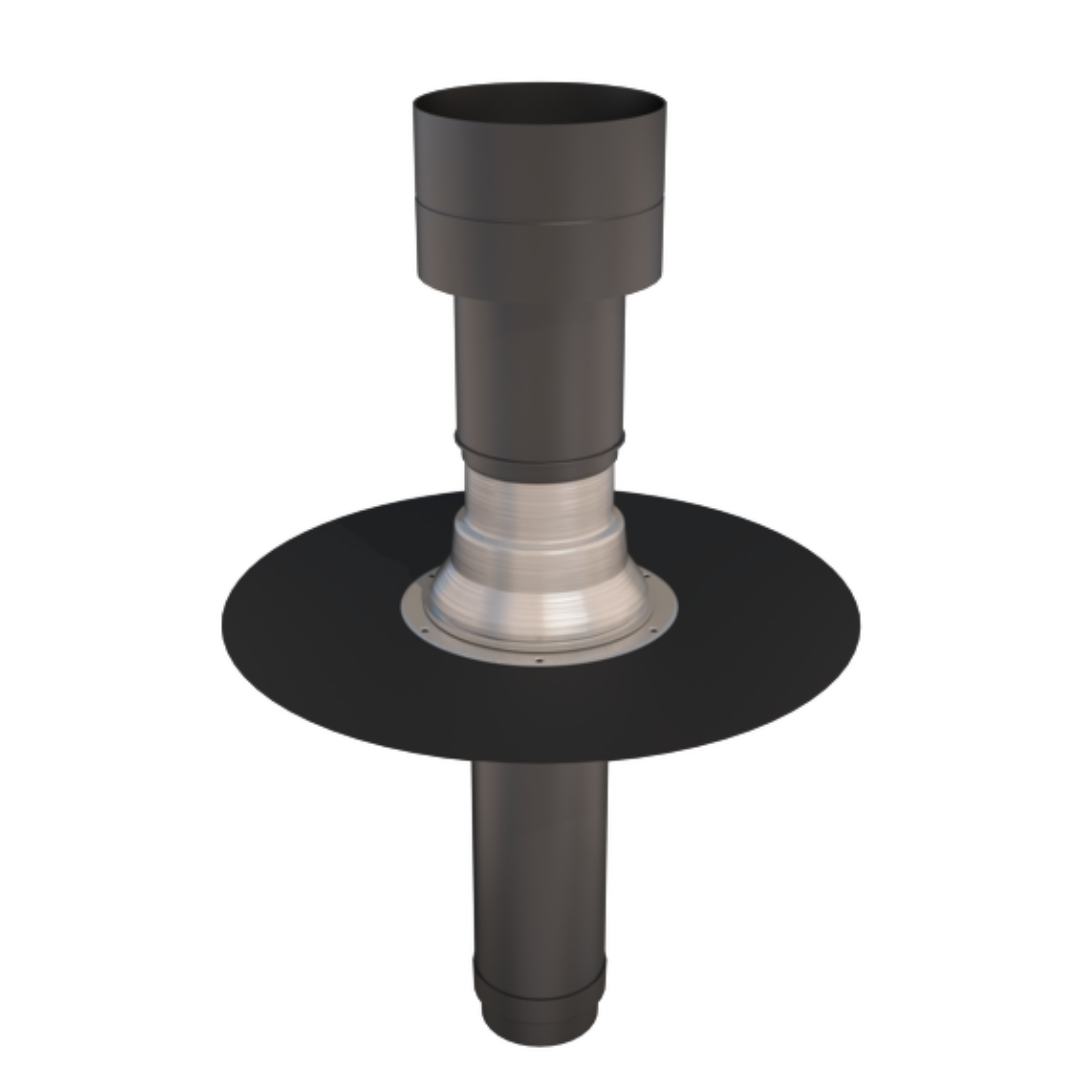

Ubbink OFT-5 Insulated Flat Roof Terminal 125mm

£163.78

Delivery Charge £20.00

The OFT 5 insulated terminal range is suitable for use with heat recovery and high volume extract fans and for both mechanical and natural (passive) ventilation installations. It has a higher insulation value above the roof space which reduces the risk of condensation. The OFT 5 internal spigot is always 166mm (excluding OFT 5 180 mm) with additional reducers provided. With the following roof finishes: Asphalt, EPDM, Bitumen and PVC

  • Large free vent area/Low Pa resistance
  • Made of high-quality PP
  • Applicable for all weather conditions
  • High ventilation capacity
  • Fully insulated to the cowl
  • 2 piece stack aluminium flange
  • Elegant design
  • For new build and renovation purposes

General Info

What are filters and why should I change them in my MVHR Heat Recovery System?

The filters in your MVHR Heat Recovery system are vital to your indoor air quality help protect the unit and prolong its life. There are two filters inside the unit - one for extract air and one for supply air.

As air moves through the system, dust, debris, and grease starts to build up and the filters protect the motors and heat exchanger, whilst cleansing the air entering your home.
Filters for MVHR Heat Recovery System are recommended to be replaced every 6 months, but this is dependent on your outdoor and indoor air quality.  Units and filters in higher pollution areas may need replacing as little as every 3 months.
MVHR Heat Recovery is a whole house ventilation system designed for the modern energy efficient home.  It supply’s fresh filtered air and at the same time extracts stale, moisture, and pollutant laden air, recovering up to 95% of the heat that would otherwise have been lost. Your MVHR system helps reduce your heating bill and maintains your comfort all year round – plus no condensation or mould!
An annual service is also recommended for your MVHR Heat Recovery System to clean and sanitise motors, the heat exchanger, air valves, ducting and to complete a full airflow test. Book an MVHR service

How Do I change my MVHR Filters?

Basic Guidance:
•    Power off your heat recovery unit
•    If required, remove the front panel from the heat recovery unit, alternatively, pull the visible filter handles
•    Remove the heat recovery filters from the heat recovery unit by pulling the tab
•    Insert the new heat recovery filters into the heat recovery unit – make sure you place the correct filter on the supply and extrac sides of your unit
•    Replace the front panel or filter handles
•    Power up the MVHR Heat Recovery unit
•    Reset the filter/maintenance light

Delivery & Returns

  • The Air Shop uses FedEx for shipping and a tracking number is provided (if alternative courier is used, this will be advised through tracking confirmation information)
  • Our standard is 48-hour shipping – orders arrive 2 days after purchase (If ordered before 12pm orders arrive next day)
  • Your delivery date will be advised within 24 hours of completion of order based on stock availability
  • Delivery is available Monday – Friday (if alternative is required, please call to discuss)
  • The Air Shop cannot be held responsible for delivery delays by the courier
  • Orders over 30kg are excluded from free shipping and a charge will apply which will be shown on checkout


Multiple Unit Orders & Larger Pallet
If you are wanting to purchase multiple units for a larger project or require a pallet delivery we will provide a separate and personalised quote for this. Please contact our office 033 0223 6776 or email sales@theairshop.com


Collection
Orders are available for collection, please contact us on 033 0223 6776 or email sales@theairshop.com to confirm your item Is in stock and agree a date/time.

Opening Hours
Monday – Friday / 8:00am – 5:30pm
13 Market Road, Richmond, London, TW9 4LZ

Back orders If your item is out of stock, we will back order if for you or give you the option to cancel .

Specifications

Fire Rated: No
Dimensions: 1156 x 490 x 490mm
Weight: 3.49kg
SKU: 50147230
