FREE MVHR SYSTEM PROPOSAL - SEND DRAWINGS TO SALES@THEAIRSHOP.CO.UK











Up to 350m2
Passivhaus

Vent Axia Lo-Carbon Sentinel Econiq LCP Passivhaus Certified MVHR 499648/499649

£3300.00

Bulky Item Delivery (30kg +) £85.00

First PassivHaus Range from Vent Axia - The Lo-Carbon Sentinel Econiq is high performance MVHR Heat Recovery system and ideal for highly efficient homes up to 350m2.

One of the quietest systems on the market, with a noise level as low as 15.5 dB(A) , the range is designed with an integral acoustic enclosure, made of steel, foam and expanded polypropylene (EPP), to minimise noise.

The Econiq range features the Vent-Axia Connect smartphone application which allows control of the MVHR unit from the comfort of the sofa including increasing airflow rates in the summer, or reducing when away from the home. The Sentinel control logic also allows automated functions such as frost protection and summer bypass.

The Passivhaus unit has a built-in pre-heater as standard with optional external duct heaters available to maximise comfort.

See the product info tab for key information & datasheets

Product Info

Key Product Information

Vent Axia Lo-Carbon Sentinel Econiq Passivhaus Certified Data Sheet
Vent Axia Lo-Carbon Sentinel Econiq Product Brochure
Vent Axia Lo-Carbon SSentinel Econiq Passivhaus Certified Video

Vent Axia Lo-Carbon Sentinel Econiq LCP Passivhaus Certified

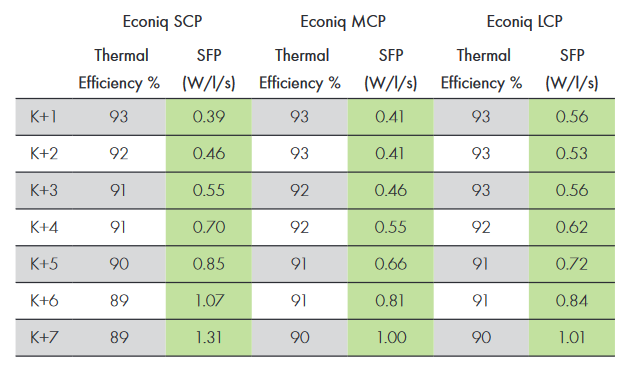

• Best in class SFP’s and thermal efficiencies up to 93%
Passivhaus certified
• New Sentinel-X Wireless control platform
• Intelligent smart app for easy control inside the home
• Horizontal duct option for space-saving install (M & L)
• Sound levels as low as 15.5 dB(A) breakout - independently tested and verified by SRL
• UK manufactured
• Constant Volume - Maintains pre-set airflow irrespective of system pressure within it’s performance capabilities
• Built in pre-heater as standard with optional external duct heaters

Do you need a MVHR Design for this unit for your home?
Our MVHR specialists can help provide a competitive quotation for you.

Delivery & Returns

  • The Air Shop uses a range of couriers including FedEx & DPD for shipping and a tracking number is provided (if alternative courier is used, this will be advised through tracking confirmation information)
  • 48 hour shipping available
  • Your delivery date will be advised within 24 hours of completion of order based on stock availability
  • Delivery is available Monday – Friday (if alternative is required, please call to discuss)
  • The Air Shop cannot be held responsible for delivery delays by the courier
  • Orders over 30kg are excluded from free shipping and a charge will apply which will be shown on checkout


Multiple Unit Orders & Larger Pallets
If you are wanting to purchase multiple units for a larger project, or require a pallet delivery we will provide a separate and personalised quote for this. Please contact our office 033 0223 6776 or email sales@theairshop.com

Collection
Orders are available for collection, please contact us on 033 0223 6776 or email sales@theairshop.com to confirm your item Is in stock and agree a date/time.

Opening Hours
Monday – Friday / 8:00am – 5:30pm
13 Market Road, Richmond, London, TW9 4LZ

Back orders If your item is out of stock, we will back order if for you or give you the option to cancel

Specifications

Dimensions: 760 x 660 x 443 mm
Weight: 32kg
Duct Diameter: 200mm
Airflow rate Max: 200l/s
Airflow rate at 100Pa: 105/s
Max Floor Area: 350m2
Heat Recovery Efficiency: Up to 86%
Sound Levels db(A) @ 3m: Sound levels as low as 15.5 dB(A) breakout
Mounting: Wall/Floor
Warranty: 5 Years
Manufacturer SKU: 499648
Filters: Proper Stopper (F7)/Dust Destroyer (G4)

Learn about the Vent-Axia Sentinel Econiq Unit features

Learn about Zehnder RapidLock Connection features
