FREE MVHR SYSTEM PROPOSAL - SEND DRAWINGS TO SALES@THEAIRSHOP.CO.UK











Up to 330m2
5 year warranty

Vent-Axia Sentinel Econiq L MVHR Unit 499641

£2680.00

Bulky Item Delivery (30kg +) £75.00

The Lo-Carbon Sentinel Econiq is Vent-Axia’s latest MVHR unit, the highly sculpted interior surfaces, designed using the latest CFD techniques, ensure airflows are maximised through the unit, minimising noise and energy use. This feature alone provides an experience, that will delight homeowners, providing the most discrete and highly efficient ventilation available.

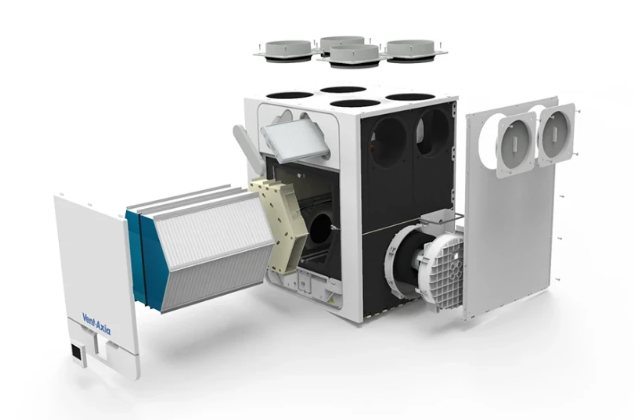

The Lo-Carbon Sentinel Econiq is one of the quietest systems on the market, with a noise level as low as 15.5 dB(A). The range is designed with an integral acoustic enclosure, made of steel, foam and expanded polypropylene (EPP), minimising breakout noise. The highly efficient motors are mounted on anti-vibration mounts to ensure minimal vibration transmission.

The inclusion of horizontal spigots allows for flexible installation in tight spaces. It is possible to use both vertical and horizontal connections.

Max Floor Area 330m2

Product Info

Key Product Information:

Vent Axia Sentinel Econiq Data Sheet
Vent Axia Sentinel Econiq Product Brochure
Vent-Axia Sentinel Econiq Homeowner Guide
Vent Axia Sentinel Econiq Installation Instructions

Best in class SFP's and thermal efficiencies up to 93%
• Approved Document F aligned commissioning wizard
• New Sentinel-X wireless control platform
• Intelligent smart app control as standard
• Horizontal duct option for space-saving installations (M & L only)
• ISO ePM10 (M5) and ePM2.5 (F7) filtration options
• Sound levels as low as 15.5 dB(A) breakout
- independently tested and verified by SRL
• Left/right handing via controls
• Developed and manufactured in the UK
• Acoustic enclosure and top box options (S only)

Accessories

Filter Options

  • Available in three levels: Basic Barrier, Dust Destroyer, and Summer Sneezer.

  • Filters out coarse and large particles such as dust, sand, hair, and insects; G3 / ISO Coarse 55% (ISO16890) filtration.

  • Compatible with Vent-Axia Sentinel Kinetic Advance units (405215, 405216, 476808, 476809, 472667) and includes free delivery.

Semi Rigid Ducting

  • Provides excellent airflow with flexibility and durability.

  • Available from trusted brands such as Zehnder ComfoTube and Ubbink Air Excellent.

  • Designed for reliable, long-term performance in ventilation systems.

Vent-Axia Wireless Transmitter Controller

  • Additional controller for the 441865 Wireless Transmitter Controller Receiver Kit.

  • Can connect to other accessories, such as a humidistat, for enhanced functionality.

  • Sends a boost signal wirelessly to the connected ventilation system.

Vent-Axia Trickle/Boost Switch

  • Single gang switch designed for use with all heat recovery systems.

  • Allows manual control to boost from low to high speeds.

  • Simple and effective way to adjust ventilation performance as needed.

Vent-Axia Normal Boost Purge Switch

  • Single gang switch designed to control ventilation speeds.

  • Allows switching between normal, boost, and purge modes.

  • Provides easy manual operation for managing airflow settings.

Standard Valve

  • Available in Supply and Extract

  • Suitable for 125mm duct connections

  • Made from powder coated metal

Ergovent Rondo Valve

  • For both air supply and extract

  • Suitable for 125mm duct connections

  • Reliable magnetic holders hold up to 10.75 kg

Ubbink Haelix Rondo Valve

  • For both air supply and extract

  • Easy adjustment with 9-step air flow restrictor

  • Features a dirt deposit prevention flange

View All Valves

General Info

What is an MVHR System and what is it doing for my home?

Improvements in modern building techniques means that our homes are becoming more airtight than ever, which is great for insulation however it can leave stale air, foul smells, condensation and damp. An MVHR (Mechanical Ventilation and Heat Recovery) system is a complex ventilation system that extracts polluted air from your home and replaces it with a filtered and clean air supply whilst recovering the heat for your home.

The unit itself is either located in a utility cupboard or loft. Newer homes fitted with these systems have a much better indoor air quality if the system is commissioned and serviced regularly. So, what are the benefits?

An MVHR system supplies fresh air into your home through a low-energy heat exchange meaning that your home is getting a consistent fresh air supply. This balanced ventilation works effectively in both the winter and the summer. The heat recovery aspect of an MVHR system recovers heat that would otherwise be lost through other ventilation systems at up to a 95% rate of efficiency. This means that the demand on your properties heating systems are reduced greatly saving you money on utilities and reducing your carbon footprint. The fact that the system is working year round means that a well-balanced system will reduce the likelihood of mould or condensation in your property which thrives in moist and humid room corners. This can massively help in alleviating airborne allergies and asthma symptoms as the air is much purer. By filtering the air, MVHR systems tackle odours and Volatile Organic Compounds (VOCs) that can be found in household products and are detrimental to your health. These harmful compounds are filtered out protecting you and improving the overall internal environment in which you live.

Delivery & Returns

  • The Air Shop uses FedEx for shipping and a tracking number is provided (if alternative courier is used, this will be advised through tracking confirmation information)
  • 48 hour shipping available
  • Your delivery date will be advised within 24 hours of completion of order based on stock availability
  • Delivery is available Monday – Friday (if alternative is required, please call to discuss)
  • The Air Shop cannot be held responsible for delivery delays by the courier
  • Orders over 30kg are excluded from free shipping and a charge will apply which will be shown on checkout


Multiple Unit Orders & Larger Pallet
If you are wanting to purchase multiple units for a larger project, or require a pallet delivery we will provide a separate and personalised quote for this. Please contact our office 033 0223 6776 or email sales@theairshop.com


Collection
Orders are available for collection, please contact us on 033 0223 6776 or email sales@theairshop.com to confirm your item Is in stock and agree a date/time.

Opening Hours
Monday – Friday / 8:00am – 5:30pm
13 Market Road, Richmond, London, TW9 4LZ

Back orders If your item is out of stock, we will back order if for you or give you the option to cancel

Specifications

Dimensions: 760 x 660 x 443 mm
Weight: 32kg
Heat Recovery Efficiency: Up to 93%
Duct Diameter: 200mm
Max Floor Area: 200l/s

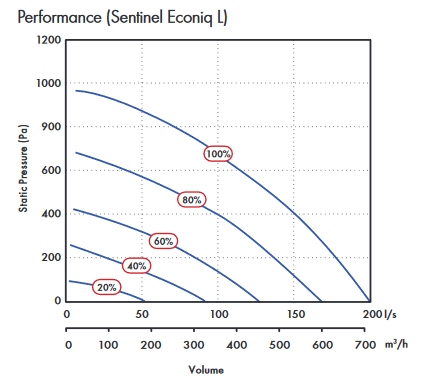

Airflow rate at 100Pa: 105l/s
Max Floor Area: 330m2
Sound Levels db(A) @ 3m: Sound levels as low as 15.5 dB(A) breakout
Mounting: Wall/Floor
Warranty: 5 Years
Filters: Summer Sneezer (M5)/Propper Stopper (F7)
Manufacture SKU: 499641

Learn about the Vent-Axia Sentinel Econiq Unit features

Learn about Zehnder RapidLock Connection features
